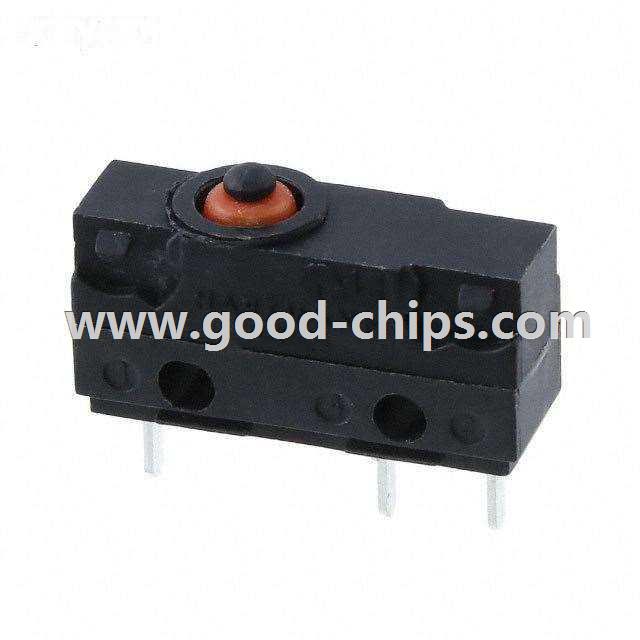

| Manufacturer Part Number: | MWZ101C01C01X02 |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9462 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 5A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MWZ101C01C01X02 Datasheet |
| Internal Part Number | 898-MWZ101C01C01X02 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | MWZ Series IP67 Snap-Action Micro Switch | |
| Online Catalog | MWZ Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Apem Inc. | |
| Series | MWZ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 5A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Operating Force, Torque | 153gf | |
| Release Force | - | |
| Pretravel | 0.030" (0.8mm) | |
| Differential Travel | 0.004" (0.1mm) | |
| Overtravel | 0.015" (0.4mm) | |
| Operating Position | 0.325" (8.25mm) | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | 50,000 Cycles | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MWZ101C01C01X02 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MWZ101C01C01X02 is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of MWZ101C01C01X02 is new and unused, you can buy MWZ101C01C01X02 Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MWZ101C01C01X02.
