| Manufacturer Part Number: | 09455511530 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Modular Connectors - Jacks With Magnetics |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |

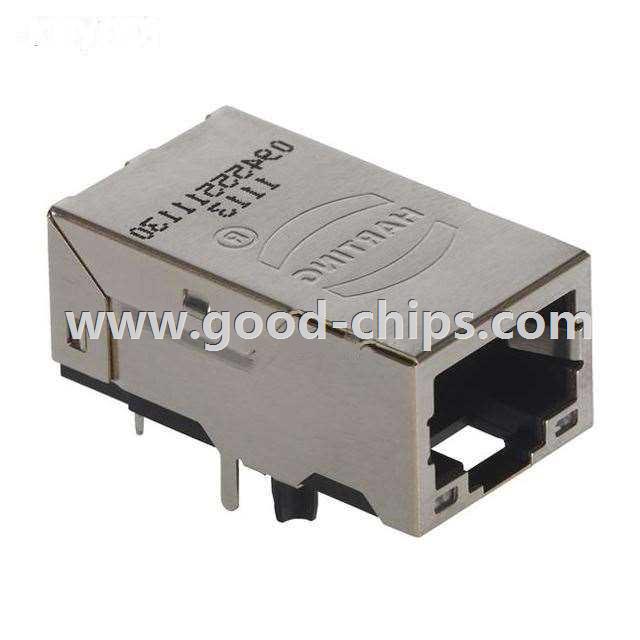

| Description: | 1 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09455511530 Datasheet |
| Internal Part Number | 898-09455511530 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | RJ Industrial® Series | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Jacks With Magnetics | |
| Manufacturer | Harting | |
| Series | RJ Industrial® | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 10/100/1000 Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.463" (11.75mm) | |
| LED Color | Does Not Contain LED | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded | |
| Features | Board Guide, Filter, Light Pipe | |
| Tab Direction | Down | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Shield Material | Brass | |
| Housing Material | - | |
| Operating Temperature | -25°C ~ 70°C | |
| Standard Package | 56 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09455511530 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09455511530 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09455511530 is new and unused, you can buy 09455511530 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09455511530.
