| Manufacturer Part Number: | KSZ9692PB-EVAL |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

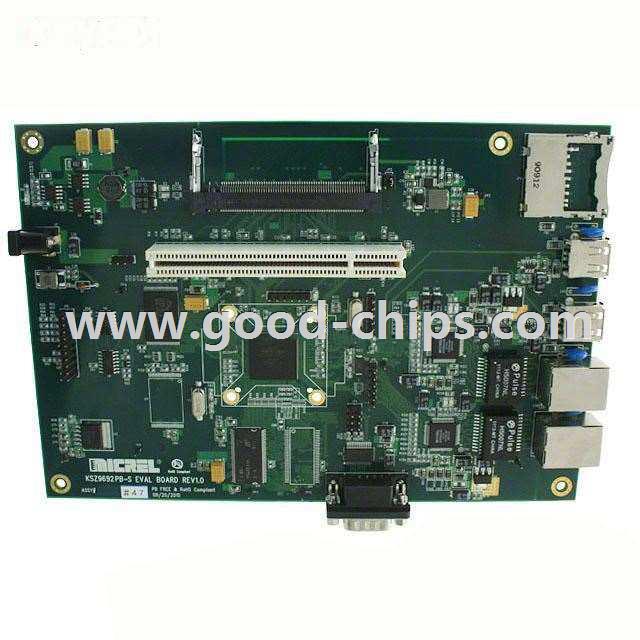

| Description: | KSZ9692PB - Reference Design, Networking Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KSZ9692PB-EVAL Datasheet |
| Internal Part Number | 898-KSZ9692PB-EVAL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Updating PTP Software on the KSZ9692 SoC 2-MII Board and the SoC Test Board | |
| Design Resources | Development Tool Selector | |
| Online Catalog | KSZ9692PB Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Discontinued | |
| Main Purpose | Reference Design, Networking | |
| Embedded | Yes, Other | |
| Utilized IC / Part | KSZ9692PB | |
| Primary Attributes | - | |
| Secondary Attributes | LED Status Indicators | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KSZ9692PB-EVAL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KSZ9692PB-EVAL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of KSZ9692PB-EVAL is new and unused, you can buy KSZ9692PB-EVAL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KSZ9692PB-EVAL.
