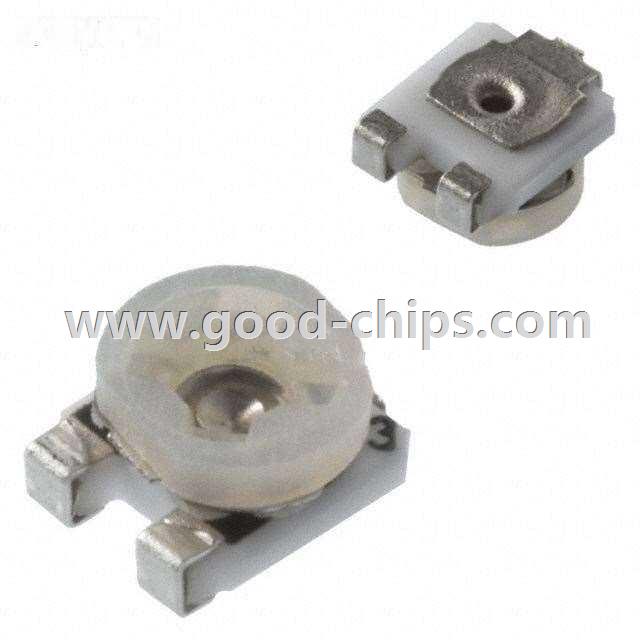

TC03X-2-502E

TC03X-2-502E
Manufacturer Part Number:TC03X-2-502E
Manufacturer:
Product Category:Trimmer Potentiometers
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:5k Ohm 0.1W, 1/10W J Lead Surface Mount Trimmer Potentiometer Cermet 1 Turn Top Adjustment
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: TC03X-2-502E Datasheet
TC03X-2-502E´s Parameters
Internal Part Number898-TC03X-2-502E
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryPotentiometers, Variable Resistors
FamilyTrimmer Potentiometers
ManufacturerBourns Inc.
SeriesTrimpot® TC03 - Open Frame
PackagingTape & Reel (TR)
Part StatusObsolete
Resistance (Ohms)5k
Power (Watts)0.1W, 1/10W
Tolerance±25%
Temperature Coefficient±250ppm/°C
Number of Turns1
Adjustment TypeTop Adjustment
Resistive MaterialCermet
Mounting TypeSurface Mount
Termination StyleJ Lead
Size / DimensionRectangular - 0.140" x 0.118" Face x 0.073" H (3.55mm x 3.00mm x 1.85mm)
Standard Package 2,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartTC03X-2-502E
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

TC03X-2-502E is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of TC03X-2-502E is new and unused, you can buy TC03X-2-502E Bourns Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for TC03X-2-502E.
