| Manufacturer Part Number: | STL24NM60N |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 600V 16A POWERFLAT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STL24NM60N Datasheet |
| Internal Part Number | 898-STL24NM60N | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | STL24NM60N View All Specifications | |
| Featured Product | PowerFLAT™ 8x8 HV | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | STMicroelectronics | |
| Series | MDmesh™ II | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 600V | |
| Current - Continuous Drain (Id) @ 25°C | 3.3A (Ta), 16A (Tc) | |
| Rds On (Max) @ Id, Vgs | 215 mOhm @ 8A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 46nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 1400pF @ 50V | |
| Power - Max | 125W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-PowerFlat™ HV | |

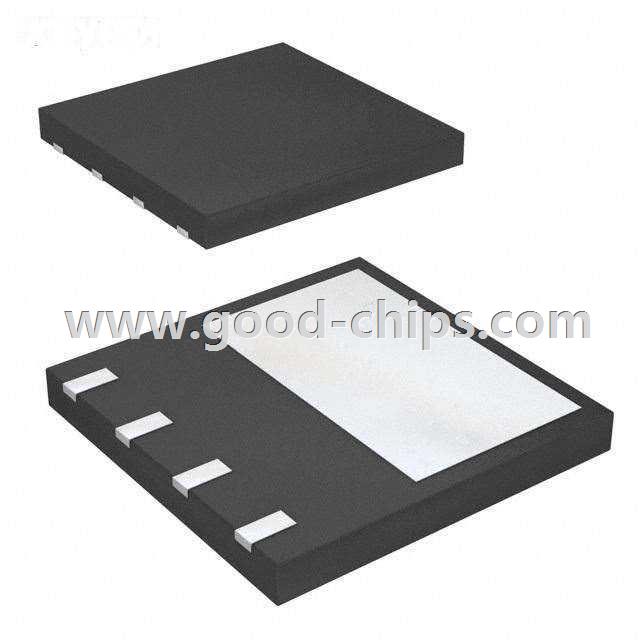

| Supplier Device Package | PowerFlat™ (8x8) HV | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STL24NM60N | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STL24NM60N is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STL24NM60N is new and unused, you can buy STL24NM60N STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STL24NM60N.
