| Manufacturer Part Number: | SPC5644AF0MMG1 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | e200z4 MPC56xx Qorivva Microcontroller IC 32-Bit 150MHz 4MB (4M x 8) FLASH 208-MAPBGA (17x17) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SPC5644AF0MMG1 Datasheet |
| Internal Part Number | 898-SPC5644AF0MMG1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Design/Specification | Datasheet Update 07/Jan/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | MPC56xx Qorivva | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | e200z4 | |
| Core Size | 32-Bit | |
| Speed | 150MHz | |
| Connectivity | CAN, EBI/EMI, LIN, SCI, SPI | |
| Peripherals | DMA, POR, PWM, WDT | |
| Number of I/O | 120 | |
| Program Memory Size | 4MB (4M x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 192K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.14 V ~ 1.32 V | |
| Data Converters | A/D 40x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 125°C (TA) | |

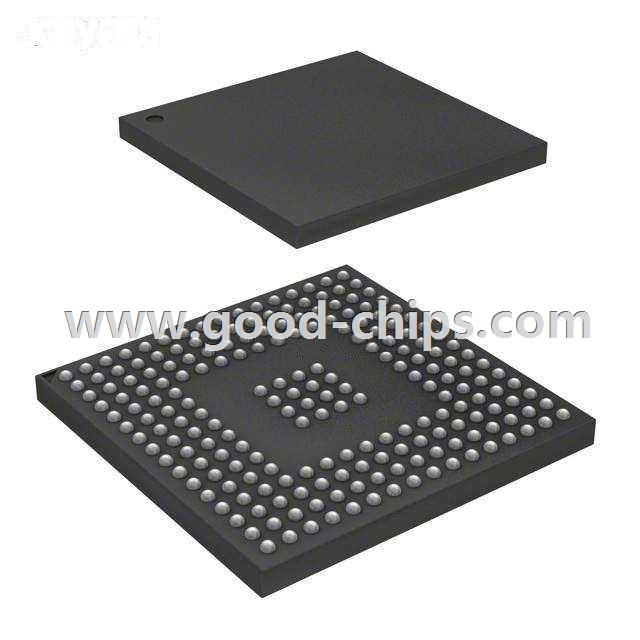

| Package / Case | 208-BGA | |
| Supplier Device Package | 208-MAPBGA (17x17) | |
| Standard Package | 450 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SPC5644AF0MMG1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SPC5644AF0MMG1 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of SPC5644AF0MMG1 is new and unused, you can buy SPC5644AF0MMG1 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SPC5644AF0MMG1.
