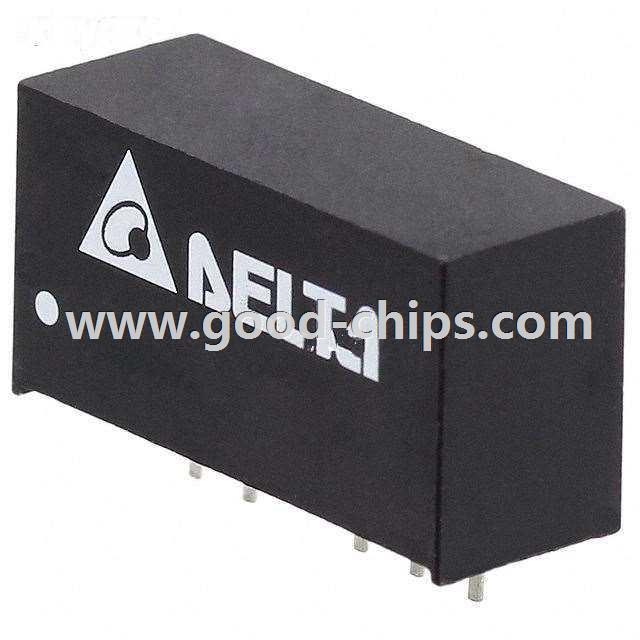

| Manufacturer Part Number: | PE01D0505A |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | DC DC Converters |
| Available Quantity: | 9087 Pieces |
| Unit Price: | Quote by Email |
| Description: | DCDC CONVERTER +/-5VOUT 1W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PE01D0505A Datasheet |
| Internal Part Number | 898-PE01D0505A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Industrial DC/DC Converters Overview | |
| Featured Product | Industrial DC-DC Converters DC/DC Converters – Delta Product Groups | |
| Online Catalog | PE01S/D Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | PE01S/D | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | -5V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 100mA, 100mA | |
| Power (Watts) - Manufacture Series | 1W | |
| Voltage - Isolation | 1kV (1000V) | |
| Applications | Medical | |
| Features | SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 6-SIP Module (5 Leads) | |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 84.5% | |
| Power (Watts) - Max | 1W | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PE01D0505A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PE01D0505A is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of PE01D0505A is new and unused, you can buy PE01D0505A Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PE01D0505A.
