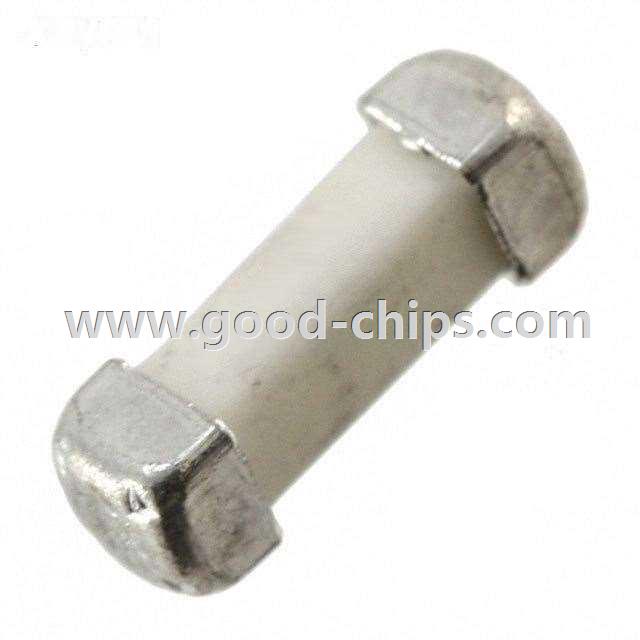

| Manufacturer Part Number: | SMM 30 |
|---|---|
| Manufacturer: | Bel Fuse Inc. |
| Product Category: | Fuses |
| Available Quantity: | 41010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE BOARD MNT 30A 250VAC 72VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SMM 30 Datasheet |
| Internal Part Number | 898-SMM 30 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Brick SMT Fuse Portfolio Power Solutions and Protection | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | SMM Series | |
| Category | Circuit Protection | |
| Family | Fuses | |
| Manufacturer | Bel Fuse Inc. | |
| Series | SMM | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Fuse Type | Board Mount (Cartridge Style Excluded) | |
| Current Rating | 30A | |
| Voltage Rating - AC | 250V | |
| Voltage Rating - DC | 72V | |
| Response Time | Medium | |
| Package / Case | 2-SMD, Square End Block | |
| Mounting Type | Surface Mount | |
| Breaking Capacity @ Rated Voltage | 100A AC, 130A DC | |
| Melting I²t | 1000 | |
| Approvals | CE, cURus | |
| Operating Temperature | -55°C ~ 125°C | |
| Color | - | |
| Size / Dimension | 0.390" L x 0.120" W 0.125" H (9.80mm x 3.05mm x 3.18mm) | |
| DC Cold Resistance | 0.0013 Ohm | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SMM 30 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SMM 30 is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of SMM 30 is new and unused, you can buy SMM 30 Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMM 30.
