Manufacturer Part Number: | TC1047ADM-PICTL |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation Boards - Sensors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

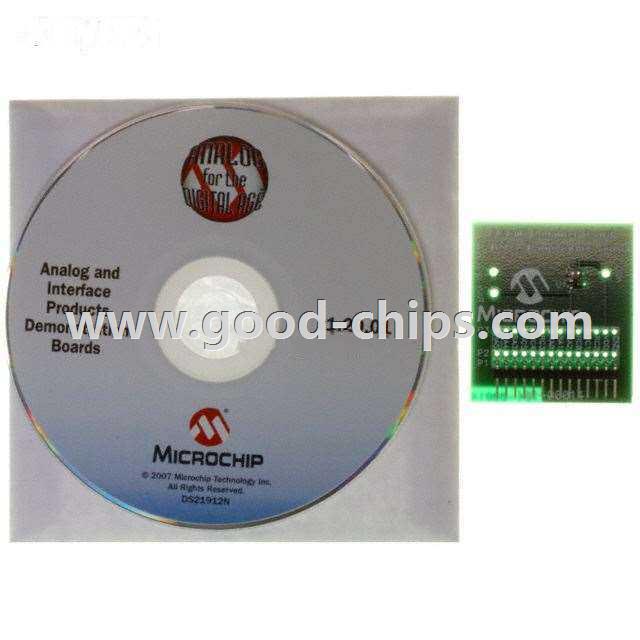

Description: | TC1047A PICtail™ Temperature Sensor Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TC1047ADM-PICTL Datasheet |
Internal Part Number | 898-TC1047ADM-PICTL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Sensors | |
Manufacturer | Microchip Technology | |
Series | PICtail™ | |
Part Status | Active | |
Sensor Type | Temperature | |
Sensing Range | -40°C ~ 125°C | |
Interface | Analog | |
Sensitivity | ±0.5°C | |
Voltage - Supply | 2.5 V ~ 5.5 V | |
Embedded | No | |
Supplied Contents | Board, Samples | |
Utilized IC / Part | TC1047A | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TC1047ADM-PICTL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TC1047ADM-PICTL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of TC1047ADM-PICTL is new and unused, you can buy TC1047ADM-PICTL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TC1047ADM-PICTL.
