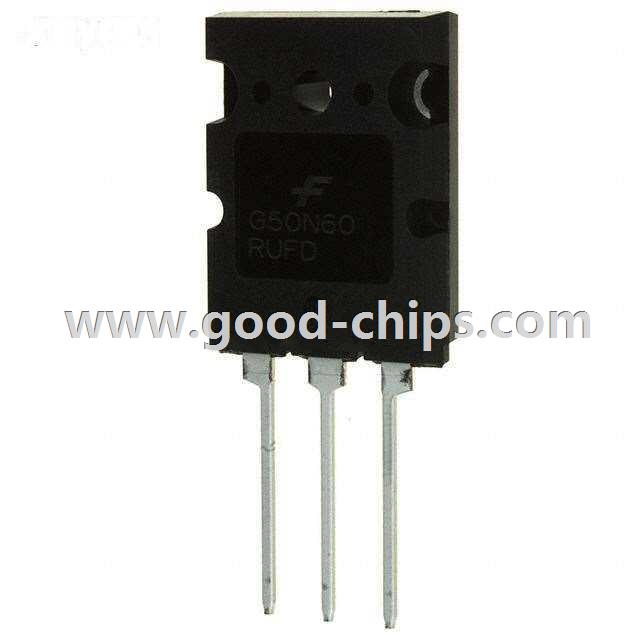

| Manufacturer Part Number: | SGL50N60RUFDTU |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9562 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 600V 80A 250W Through Hole TO-264 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SGL50N60RUFDTU Datasheet |
| Internal Part Number | 898-SGL50N60RUFDTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Switches for Power Processing | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 80A | |
| Current - Collector Pulsed (Icm) | 150A | |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 50A | |
| Power - Max | 250W | |
| Switching Energy | 1.68mJ (on), 1.03mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 145nC | |
| Td (on/off) @ 25°C | 26ns/66ns | |
| Test Condition | 300V, 50A, 5.9 Ohm, 15V | |
| Reverse Recovery Time (trr) | 100ns | |
| Package / Case | TO-264-3, TO-264AA | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-264 | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SGL50N60RUFDTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SGL50N60RUFDTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of SGL50N60RUFDTU is new and unused, you can buy SGL50N60RUFDTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SGL50N60RUFDTU.
