| Manufacturer Part Number: | EL5411IREZ-T7 |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Voltage Feedback Amplifier 4 Circuit Rail-to-Rail 14-HTSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EL5411IREZ-T7 Datasheet |
| Internal Part Number | 898-EL5411IREZ-T7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 10/Jun/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Amplifier Type | Voltage Feedback | |
| Number of Circuits | 4 | |
| Output Type | Rail-to-Rail | |
| Slew Rate | 75 V/µs | |
| Gain Bandwidth Product | 32MHz | |
| -3db Bandwidth | 60MHz | |
| Current - Input Bias | 2nA | |
| Voltage - Input Offset | 3mV | |
| Current - Supply | 10mA | |
| Current - Output / Channel | 65mA | |
| Voltage - Supply, Single/Dual (±) | 4.5 V ~ 16.5 V, ±2.25 V ~ 8.25 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

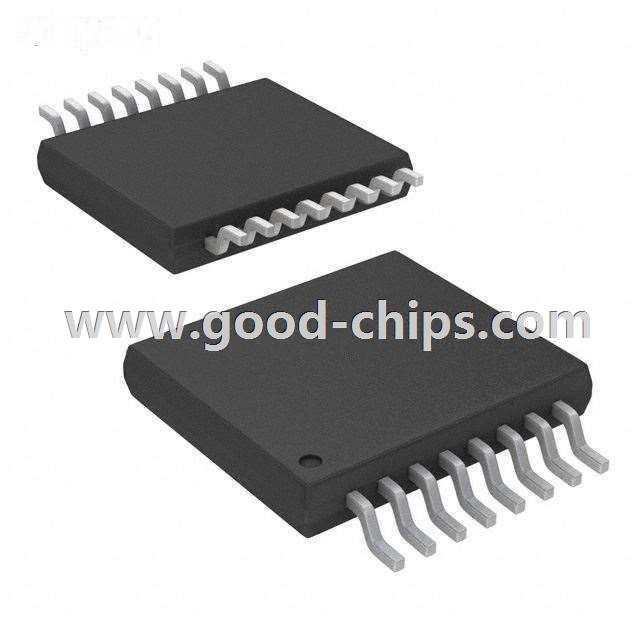

| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Supplier Device Package | 14-HTSSOP | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EL5411IREZ-T7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EL5411IREZ-T7 is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of EL5411IREZ-T7 is new and unused, you can buy EL5411IREZ-T7 Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EL5411IREZ-T7.
