Manufacturer Part Number: | SDV2415R |
---|---|
Manufacturer: | Crydom Co. |
Product Category: | Solid State Relays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

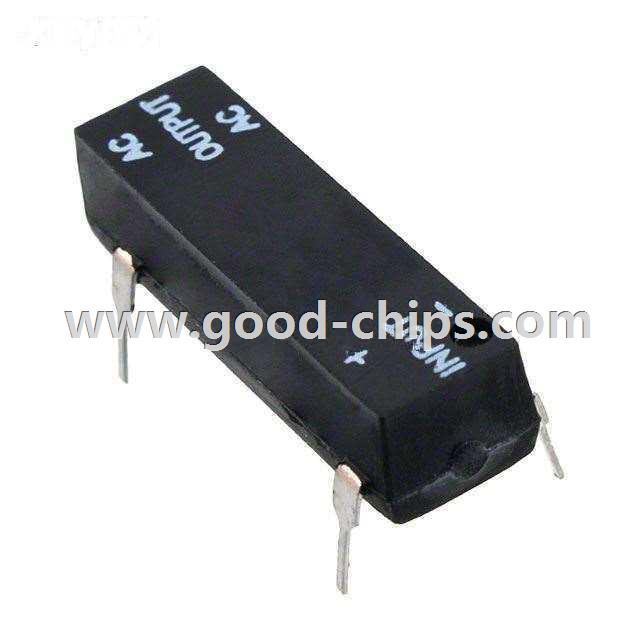

Description: | Solid State Relay SPST-NO (1 Form A) 16-DIP (0.300", 7.62mm), 4 Leads |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SDV2415R Datasheet |
Internal Part Number | 898-SDV2415R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Declaration of Conformity | |
Product Training Modules | Solid State Relays | |
3D Model | SDV/SDI Series.sat SDV/SDI Series.dwg SDV/SDI Series.stp | |
Online Catalog | SDV Series | |
Category | Relays | |
Family | Solid State Relays | |
Manufacturer | Crydom Co. | |
Series | SDV | |
Packaging | Tube | |
Part Status | Active | |
Circuit | SPST-NO (1 Form A) | |
Output Type | AC | |
On-State Resistance (Max) | - | |
Load Current | 1.5A | |
Voltage - Input | 3.5 ~ 10VDC | |
Voltage - Load | 12 ~ 280 V | |
Mounting Type | Through Hole | |
Termination Style | PC Pin | |
Package / Case | 16-DIP (0.300", 7.62mm), 4 Leads | |
Supplier Device Package | 16-DIP | |
Relay Type | Relay | |
Standard Package | 22 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SDV2415R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SDV2415R is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of SDV2415R is new and unused, you can buy SDV2415R Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SDV2415R.
