| Manufacturer Part Number: | SD-70J |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | Circular Connectors |
| Available Quantity: | 9698 Pieces |
| Unit Price: | Quote by Email |

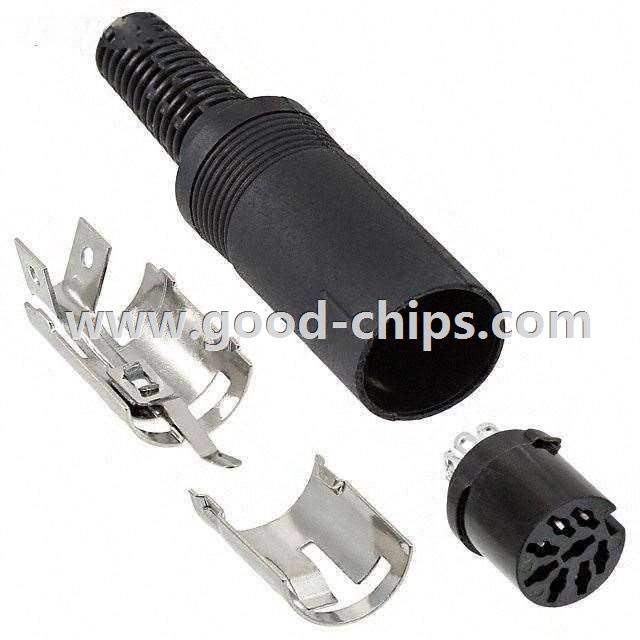

| Description: | 7 Position Circular Connector Receptacle, Female Sockets Solder Silver |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SD-70J Datasheet |
| Internal Part Number | 898-SD-70J | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | SD-xxJ Cert of Compliance | |
| 3D Model | SD-70J | |
| Online Catalog | SD Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | CUI Inc. | |
| Series | SD | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 7 | |
| Shell Size - Insert | DIN | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder | |
| Fastening Type | Push-Pull | |
| Orientation | Keyed | |
| Ingress Protection | - | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Silver | |
| Features | - | |
| Contact Finish Thickness | - | |
| Current Rating | 1A | |
| Voltage - Rated | 24VDC | |
| Operating Temperature | -5°C ~ 110°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SD-70J | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SD-70J is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of SD-70J is new and unused, you can buy SD-70J CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SD-70J.
