| Manufacturer Part Number: | SBT-16-RA-M11-MPE |
|---|---|
| Manufacturer: | Luminus Devices Inc. |
| Product Category: | LED Lighting - Color |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

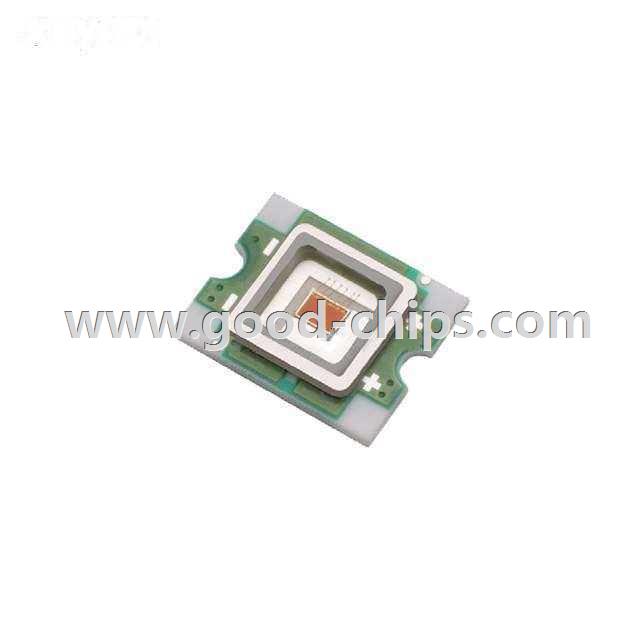

| Description: | LED Lighting Color SBT-16 Red 623nm (Typ) 4-SMD, No Lead Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SBT-16-RA-M11-MPE Datasheet |
| Internal Part Number | 898-SBT-16-RA-M11-MPE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Optoelectronics | |
| Family | LED Lighting - Color | |
| Manufacturer | Luminus Devices Inc. | |
| Series | SBT-16 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Color | Red | |
| Wavelength | 623nm (Typ) | |
| Current - Test | 4A | |
| Voltage - Forward (Vf) (Typ) | 2.4V | |
| Lumens/Watt @ Current - Test | - | |
| Current - Max | 4A | |
| Flux @ Current/Temperature - Test | - | |
| Temperature - Test | - | |
| Viewing Angle | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, No Lead Exposed Pad | |
| Thermal Resistance of Package | 6°C/W | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SBT-16-RA-M11-MPE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SBT-16-RA-M11-MPE is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of SBT-16-RA-M11-MPE is new and unused, you can buy SBT-16-RA-M11-MPE Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SBT-16-RA-M11-MPE.
