Manufacturer Part Number: | SA8V5A |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 8.5VWM 14.4VC DO15 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SA8V5A Datasheet |
Internal Part Number | 898-SA8V5A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Fairchild Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | Zener | |
Unidirectional Channels | 1 | |
Bidirectional Channels | - | |
Voltage - Reverse Standoff (Typ) | 8.5V | |
Voltage - Breakdown (Min) | 9.44V | |
Voltage - Clamping (Max) @ Ipp | 14.4V | |
Current - Peak Pulse (10/1000µs) | 34.7A | |
Power - Peak Pulse | 500W | |
Power Line Protection | No | |
Applications | General Purpose | |
Capacitance @ Frequency | - | |
Operating Temperature | - | |
Mounting Type | Through Hole | |

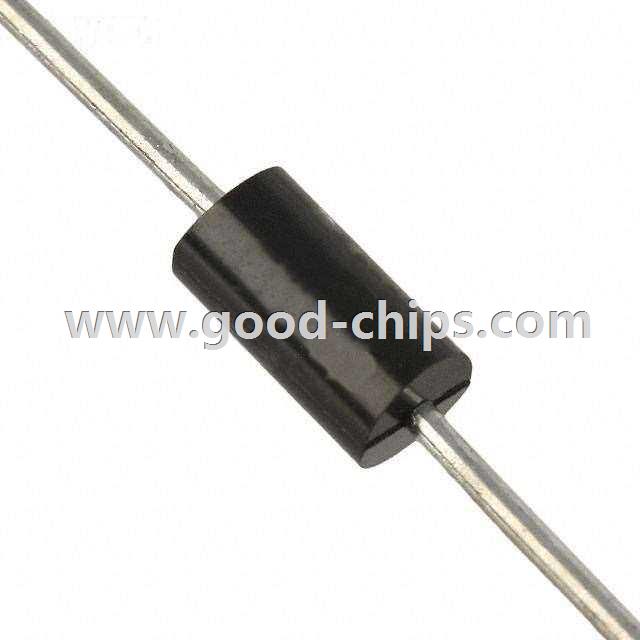

Package / Case | DO-204AC, DO-15, Axial | |
Supplier Device Package | DO-15 | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SA8V5A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SA8V5A is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of SA8V5A is new and unused, you can buy SA8V5A Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SA8V5A.
