Manufacturer Part Number: | R1S12-2415/P-R |
---|---|
Manufacturer: | Recom Power |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONV DC/DC 1W 24VIN 15VOUT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | R1S12-2415/P-R Datasheet |
Internal Part Number | 898-R1S12-2415/P-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Recom Power | |
Series | ECONOLINE R1S | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 21.6V | |
Voltage - Input (Max) | 26.4V | |
Voltage - Output 1 | 15V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 66mA | |
Power (Watts) - Manufacture Series | 1W | |
Voltage - Isolation | 1kV (1000V) | |
Applications | ITE (Commercial) | |
Features | SCP | |
Mounting Type | Surface Mount | |

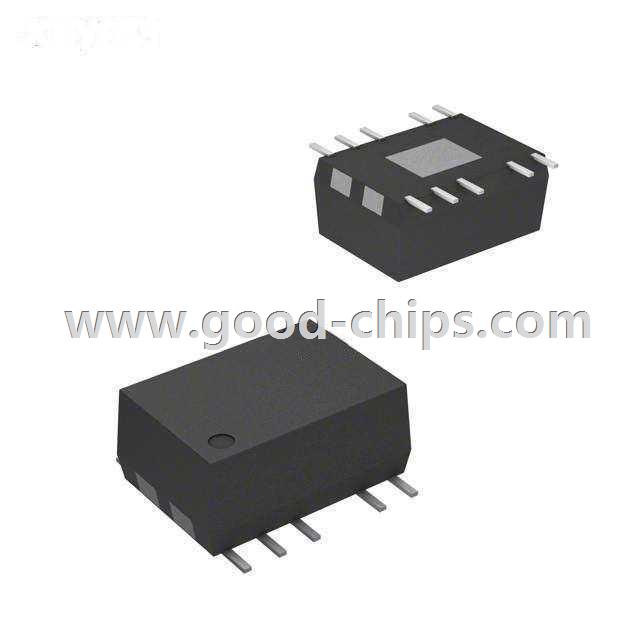

Package / Case | 12-SMD Module (10 Leads) | |
Size / Dimension | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm) | |
Operating Temperature | -40°C ~ 100°C | |
Efficiency | 82% | |
Power (Watts) - Max | 1W | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | R1S12-2415/P-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
R1S12-2415/P-R is in stock for immediate shipping now. We are the distributor of Recom Power all series components. The condition of R1S12-2415/P-R is new and unused, you can buy R1S12-2415/P-R Recom Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for R1S12-2415/P-R.
