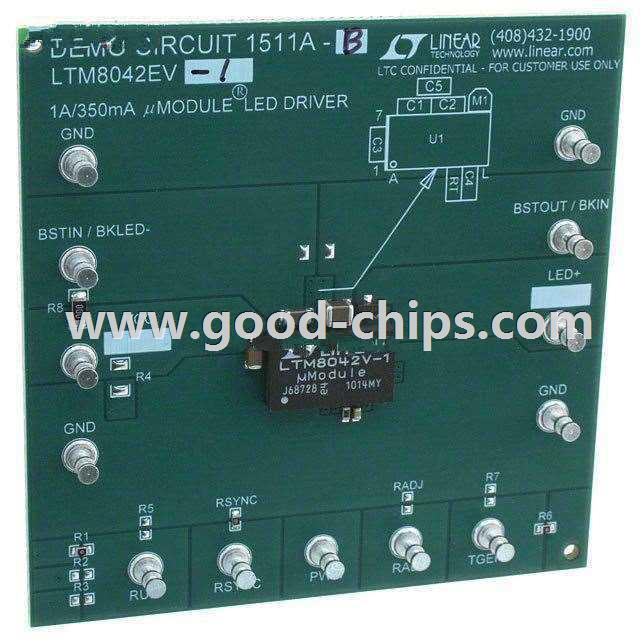

| Manufacturer Part Number: | DC1511A-B |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | LTM8042-1 1, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1511A-B Datasheet |
| Internal Part Number | 898-DC1511A-B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ | |
| Design Resources | DC1511A Design Files LTM8042-1 Spice Model DC1511A Schematic Development Tool Selector Lighting Product Selector | |
| Reference Design Library | DC1511A-B: 32Vf(max) @ 350mA, 3 ~ 30V in | |
| Online Catalog | LTM8042 and LTM8042-1 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 350mA | |
| Outputs and Type | 1, Non-Isolated | |
| Voltage - Output | 36V | |
| Features | PWM Brightness control | |
| Voltage - Input | 3 V ~ 30 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | LTM8042-1 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1511A-B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1511A-B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1511A-B is new and unused, you can buy DC1511A-B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1511A-B.
