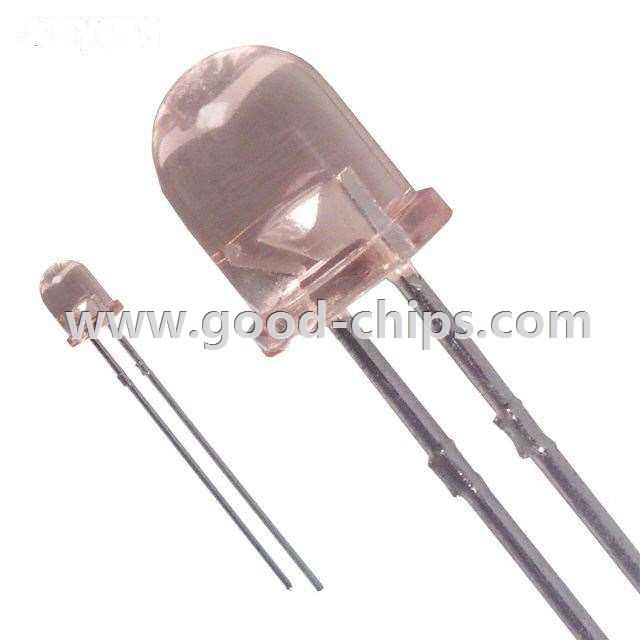

Manufacturer Part Number: | QED522 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Infrared, UV, Visible Emitters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Infrared (IR) Emitter 880nm 1.8V 100mA 20mW/sr @ 100mA 20° TO-46-2 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | QED522 Datasheet |
Internal Part Number | 898-QED522 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 03/Dec/2009 | |
Category | Optoelectronics | |
Family | Infrared, UV, Visible Emitters | |
Manufacturer | Fairchild Semiconductor | |
Series | - | |
Packaging | - | |
Part Status | Obsolete | |
Type | Infrared (IR) | |
Current - DC Forward (If) (Max) | 100mA | |
Radiant Intensity (Ie) Min @ If | 20mW/sr @ 100mA | |
Wavelength | 880nm | |
Voltage - Forward (Vf) (Typ) | 1.8V | |
Viewing Angle | 20° | |
Orientation | Top View | |
Operating Temperature | -40°C ~ 100°C (TA) | |
Mounting Type | Through Hole | |
Package / Case | TO-46-2 | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | QED522 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
QED522 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of QED522 is new and unused, you can buy QED522 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for QED522.
