| Manufacturer Part Number: | 971 |
|---|---|
| Manufacturer: | Keystone Electronics |
| Product Category: | Barrel - Audio Connectors |
| Available Quantity: | 9254 Pieces |
| Unit Price: | Quote by Email |

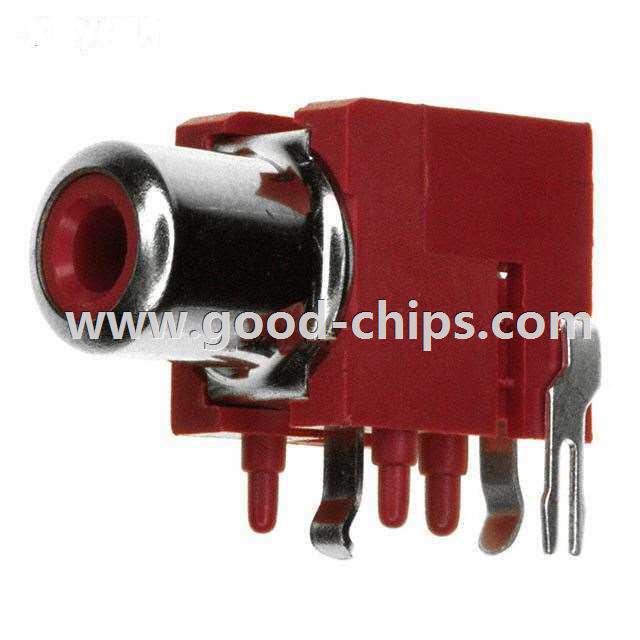

| Description: | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 971 Datasheet |
| Internal Part Number | 898-971 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance Statement | |
| Online Catalog | Keystone Electronics | |
| Category | Connectors, Interconnects | |
| Family | Barrel - Audio Connectors | |
| Manufacturer | Keystone Electronics | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Phono (RCA) Jack | |
| Gender | Female | |
| Signal Lines | Mono | |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) | |
| Actual Diameter | 0.125" (3.18mm ID), 0.327" (8.31mm OD) | |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | |
| Internal Switch(s) | Single Switch | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Shielding | Unshielded | |
| Features | Board Lock | |
| Insulation Color | Red | |
| Voltage - Rated | - | |
| Current Rating | - | |
| Mating Length/Depth | - | |
| Contact Material - Plating | Nickel | |
| Body Material | Brass | |
| Body Color | Silver, Red | |
| Includes | 1 pc - 1 Connector | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 971 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
971 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 971 is new and unused, you can buy 971 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 971.
