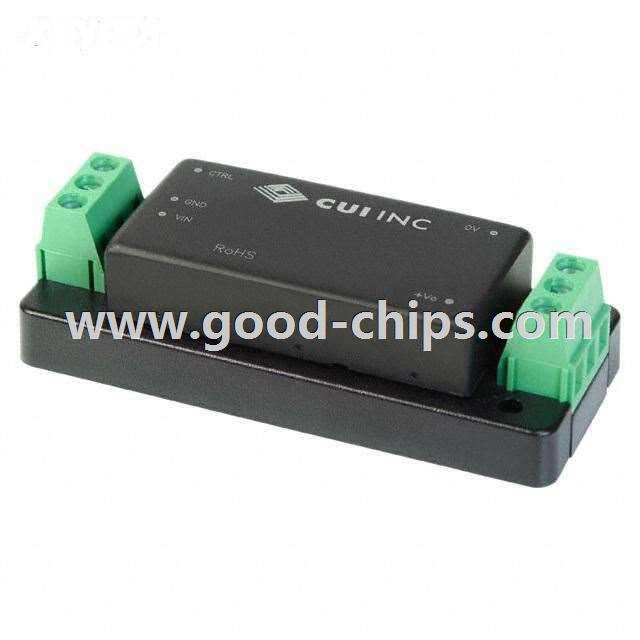

| Manufacturer Part Number: | PYB10-Q24-S3-T |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9097 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 3.3V 10W CM |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PYB10-Q24-S3-T Datasheet |
| Internal Part Number | 898-PYB10-Q24-S3-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
| Featured Product | PYB Series High-Efficiency 10 ~ 30 W DC-DC Converters Slim-Line Chassis-Mount DC-DC Converters Industrial Applications | |
| 3D Model | PYB10-Q24-S3-T | |
| Online Catalog | PYB10-T Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | PYB10-T | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Isolated | |
| Voltage - Input | 9 ~ 36 V | |
| Output | 3.3V | |
| Number of Outputs | 1 | |
| Output - 1 @ Current (Max) | 3.3 VDC @ 2.4A | |
| Output - 2 @ Current (Max) | - | |
| Output - 3 @ Current (Max) | - | |
| Output - 4 @ Current (Max) | - | |
| Power (Watts) | 10W | |
| Applications | - | |
| Mounting Type | Chassis Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 79% | |
| Package / Case | Module | |
| Size / Dimension | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | |
| Power (Watts) - Max | 8W | |
| Approvals | EN, IEC | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PYB10-Q24-S3-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PYB10-Q24-S3-T is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PYB10-Q24-S3-T is new and unused, you can buy PYB10-Q24-S3-T CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PYB10-Q24-S3-T.
