Manufacturer Part Number: | PM5-PHD |
---|---|
Manufacturer: | Bivar Inc. |
Product Category: | Panel Indicators, Pilot Lights |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

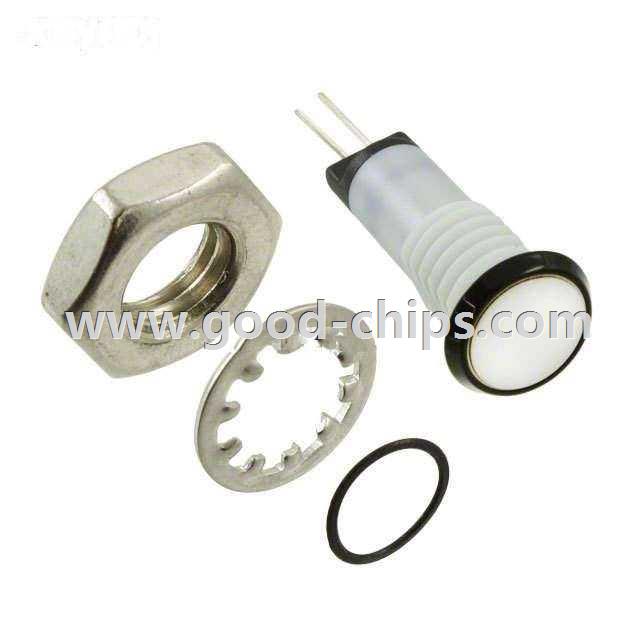

Description: | LED Panel Indicator Red Diffused 120° 8 V ~ 48 V 20mA Round with Flat Top, 9.70mm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PM5-PHD Datasheet |
Internal Part Number | 898-PM5-PHD | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Press Fit LED Panel Assemblies | |
Category | Optoelectronics | |
Family | Panel Indicators, Pilot Lights | |
Manufacturer | Bivar Inc. | |
Series | PM5 | |
Part Status | Active | |
Type | LED | |
Lamp Color | Red | |
Lens Color | White | |
Lens Transparency | Diffused | |
Ratings | AC/DC | |
Voltage | 8 V ~ 48 V | |
Current | 20mA | |
Panel Cutout Shape | Round | |
Panel Cutout Dimensions | 0.39" (9.91mm) | |
Lens Style/Size | Round with Flat Top, 9.70mm | |
Millicandela Rating | 25mcd | |
Wavelength - Peak | 625nm | |
Viewing Angle | 120° | |
Termination Style | - | |
Ingress Protection | IP67 | |
Features | - | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PM5-PHD | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PM5-PHD is in stock for immediate shipping now. We are the distributor of Bivar Inc. all series components. The condition of PM5-PHD is new and unused, you can buy PM5-PHD Bivar Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PM5-PHD.
