Manufacturer Part Number: | RJK0346DPA-01#J0B |
---|---|
Manufacturer: | Renesas Electronics America |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 30V 65A WPAK |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RJK0346DPA-01#J0B Datasheet |
Internal Part Number | 898-RJK0346DPA-01#J0B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Compliance | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Renesas Electronics America | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Logic Level Gate, 4.5V Drive | |
Drain to Source Voltage (Vdss) | 30V | |
Current - Continuous Drain (Id) @ 25°C | 65A (Ta) | |
Rds On (Max) @ Id, Vgs | 1.8 mOhm @ 25A, 10V | |
Vgs(th) (Max) @ Id | - | |
Gate Charge (Qg) @ Vgs | 49nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 7650pF @ 10V | |
Power - Max | 65W | |
Operating Temperature | 150°C (TJ) | |
Mounting Type | Surface Mount | |

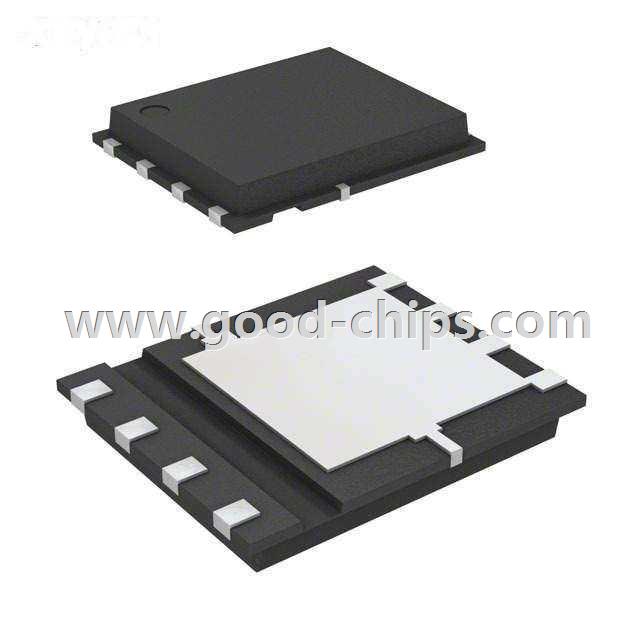

Package / Case | 8-PowerWDFN | |
Supplier Device Package | 8-DFN (5x6) | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RJK0346DPA-01#J0B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RJK0346DPA-01#J0B is in stock for immediate shipping now. We are the distributor of Renesas Electronics America all series components. The condition of RJK0346DPA-01#J0B is new and unused, you can buy RJK0346DPA-01#J0B Renesas Electronics America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RJK0346DPA-01#J0B.
