| Manufacturer Part Number: | PIC16F690DM-PCTLHS |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |

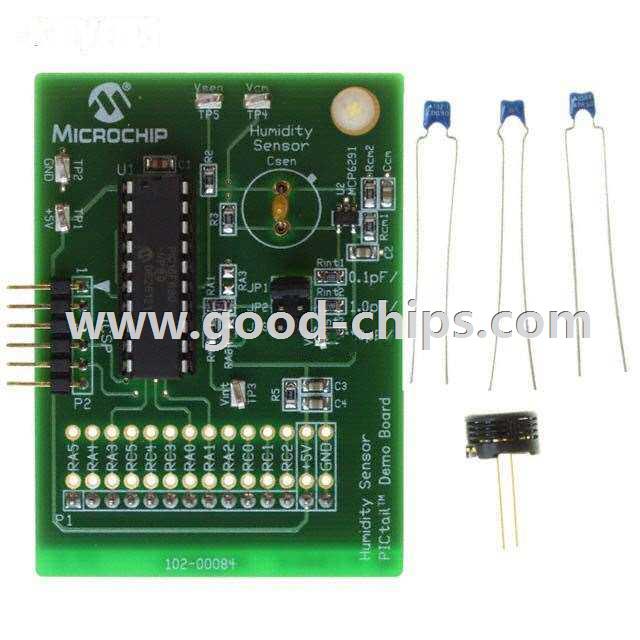

| Description: | MCP6291, PIC16F690 PICtail™ Humidity Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PIC16F690DM-PCTLHS Datasheet |
| Internal Part Number | 898-PIC16F690DM-PCTLHS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP6291 and PIC16F690 Humidity Sensor PICtail™ Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Microchip Technology | |
| Series | PICtail™ | |
| Part Status | Active | |
| Sensor Type | Humidity | |
| Sensing Range | 1 ~ 99% RH | |
| Interface | Analog | |
| Sensitivity | - | |
| Voltage - Supply | 5V | |
| Embedded | Yes, MCU, 8-Bit | |
| Supplied Contents | Board, Samples | |
| Utilized IC / Part | MCP6291, PIC16F690 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PIC16F690DM-PCTLHS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PIC16F690DM-PCTLHS is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of PIC16F690DM-PCTLHS is new and unused, you can buy PIC16F690DM-PCTLHS Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PIC16F690DM-PCTLHS.
