| Manufacturer Part Number: | 09692815140 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | D-Sub, D-Shaped Connectors - Contacts |
| Available Quantity: | 9090 Pieces |
| Unit Price: | Quote by Email |

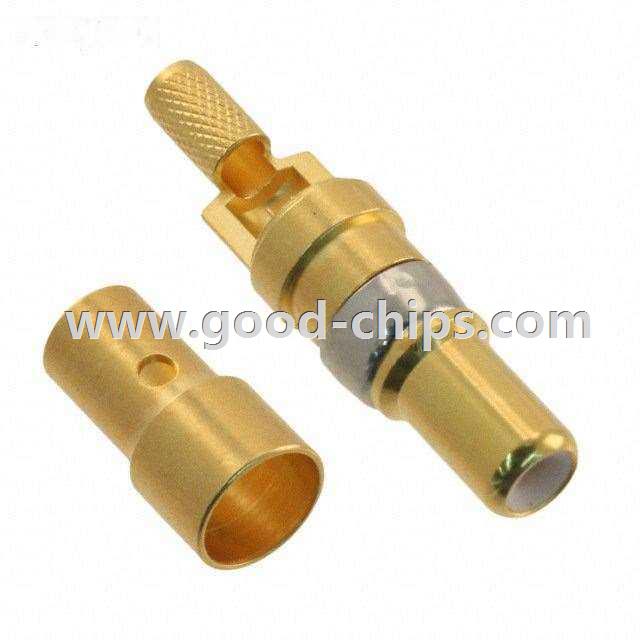

| Description: | D-Sub Contact Male Pin Gold Coaxial Cable Crimp and Solder Machined |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09692815140 Datasheet |
| Internal Part Number | 898-09692815140 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | D-Sub | |
| Category | Connectors, Interconnects | |
| Family | D-Sub, D-Shaped Connectors - Contacts | |
| Manufacturer | Harting | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Coaxial | |
| Contact Type | Male Pin | |
| Contact Form | Machined | |
| Wire Gauge | Coaxial Cable | |
| Contact Termination | Crimp and Solder | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 51.2µin (1.30µm) Inner, 31.5µin (0.80µm) Outer | |
| Termination Finish | Gold | |
| Termination Finish Thickness | 51.2µin (1.30µm) Inner, 8µin (0.20µm) Outer | |
| Contact Size | - | |
| Features | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09692815140 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09692815140 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09692815140 is new and unused, you can buy 09692815140 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09692815140.
