.jpg)

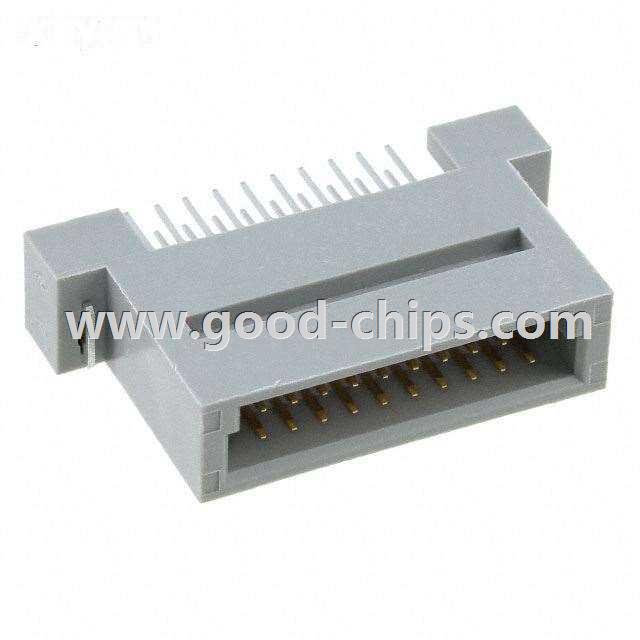

| Manufacturer Part Number: | PCN10HA-20P-2.54DSA(72) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Backplane Connectors - DIN 41612 |
| Available Quantity: | 9050 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN DIN HEADER 20POS |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PCN10HA-20P-2.54DSA(72) Datasheet |
| Internal Part Number | 898-PCN10HA-20P-2.54DSA(72) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | PCN10 and PCN13 Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - DIN 41612 | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | PCN10 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Header, Male Pins | |
| Number of Positions | 20 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Style | - | |
| Level, Class | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 8µin (0.20µm) | |
| Operating Temperature | -55°C ~ 85°C | |
| Current Rating | 2A | |
| Material Flammability Rating | UL94 V-0 | |
| Material - Insulation | Polybutylene Terephthalate (PBT) | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PCN10HA-20P-2.54DSA(72) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PCN10HA-20P-2.54DSA(72) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of PCN10HA-20P-2.54DSA(72) is new and unused, you can buy PCN10HA-20P-2.54DSA(72) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PCN10HA-20P-2.54DSA(72).
