| Manufacturer Part Number: | MS-118405-H |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 10004 Pieces |
| Unit Price: | Quote by Email |

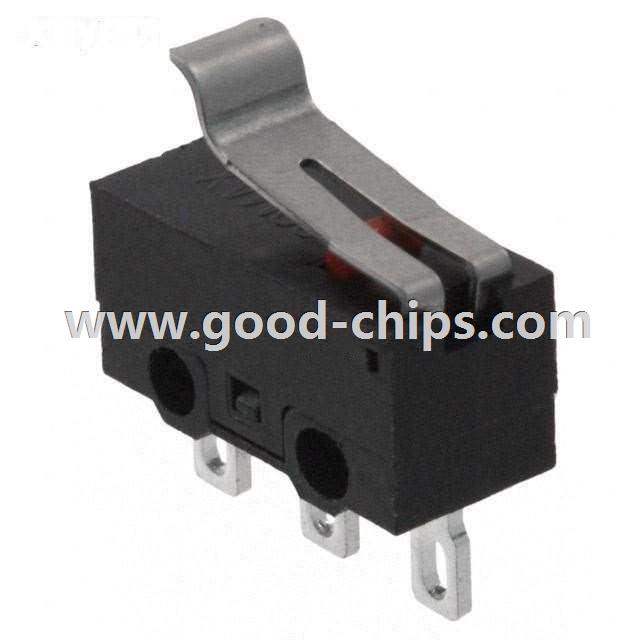

| Description: | SWITCH SNAP ACTION SPDT 100MA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MS-118405-H Datasheet |
| Internal Part Number | 898-MS-118405-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | MS, COMAX | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 100mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Lever, Simulated Roller | |
| Mounting Type | Chassis Mount | |
| Termination Style | Solder Lug | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 25gf | |
| Release Force | 5gf | |
| Pretravel | - | |
| Differential Travel | 0.020" (0.5mm) | |
| Overtravel | 0.020" (0.5mm) | |
| Operating Position | 0.335" (8.5mm) | |
| Mechanical Life | 500,000 Cycles | |
| Electrical Life | 50,000 Cycles | |
| Operating Temperature | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MS-118405-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MS-118405-H is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of MS-118405-H is new and unused, you can buy MS-118405-H C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MS-118405-H.
