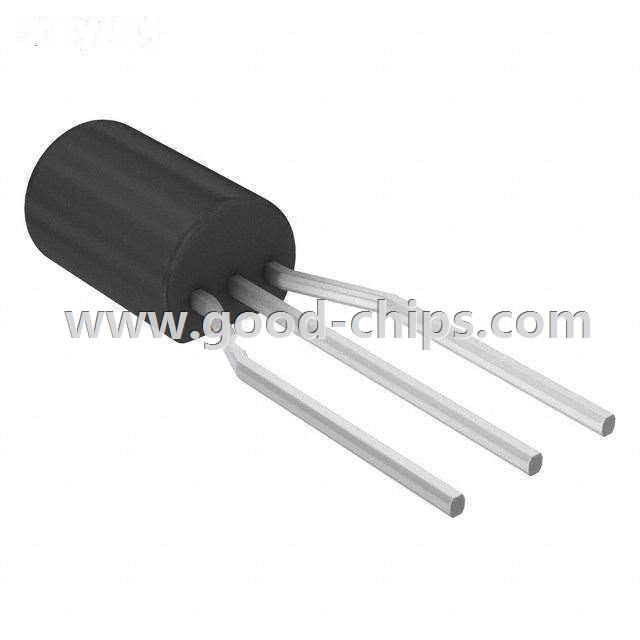

,TO-226_bentlead.jpg)
| Manufacturer Part Number: | MPSW01AG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN 40V 1A TO92 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MPSW01AG Datasheet |
| Internal Part Number | 898-MPSW01AG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 08/Nov/2014 Multiple Devices Revision 26/Nov/2014 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Transistor Type | NPN | |
| Current - Collector (Ic) (Max) | 1A | |
| Voltage - Collector Emitter Breakdown (Max) | 40V | |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 1A | |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 100mA, 1V | |
| Power - Max | 1W | |
| Frequency - Transition | 50MHz | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 Long Body | |
| Supplier Device Package | TO-92 | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MPSW01AG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MPSW01AG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of MPSW01AG is new and unused, you can buy MPSW01AG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPSW01AG.
