| Manufacturer Part Number: | JB1DB10PL2 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Circular Connectors - Housings |
| Available Quantity: | 9024 Pieces |
| Unit Price: | Quote by Email |

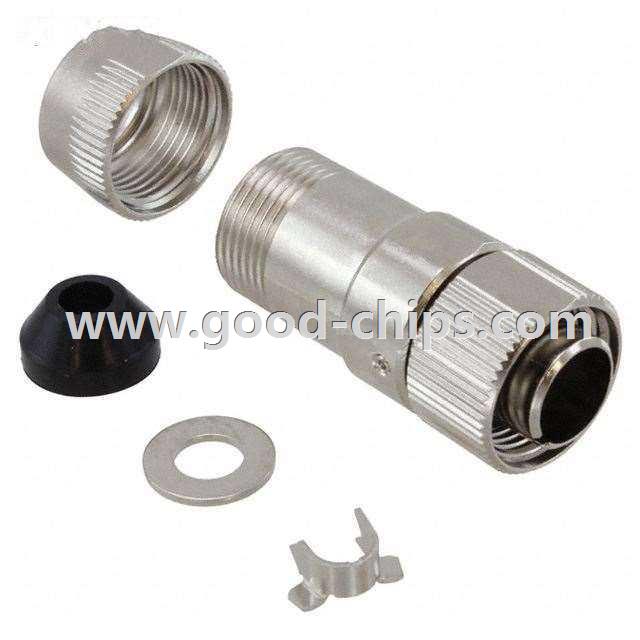

| Description: | 10 Position Circular Connector Plug for Male Contacts Free Hanging (In-Line) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JB1DB10PL2 Datasheet |
| Internal Part Number | 898-JB1DB10PL2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | JB1 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors - Housings | |
| Manufacturer | JAE Electronics | |
| Series | JB1 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug for Male Contacts | |
| Number of Positions | 10 | |
| Shell Size - Insert | B10 | |
| Shell Size, MIL | - | |
| Contact Type | Crimp | |
| Contact Size | 22 | |
| Mounting Type | Free Hanging (In-Line) | |
| Fastening Type | Threaded | |
| Orientation | - | |
| Shell Material, Finish | Zinc, Nickel Plated | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Note | Contacts Not Provided | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JB1DB10PL2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JB1DB10PL2 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JB1DB10PL2 is new and unused, you can buy JB1DB10PL2 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JB1DB10PL2.
