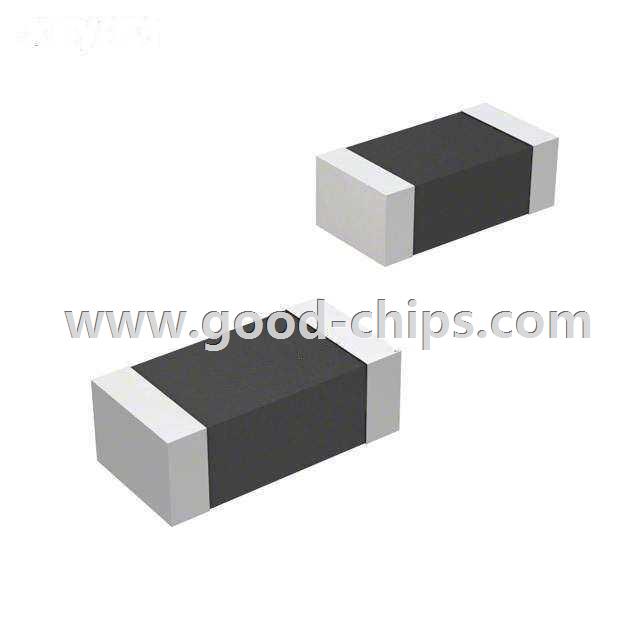

Manufacturer Part Number: | MH3261-121Y |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Ferrite Beads and Chips |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 120 Ohm Impedance Ferrite Bead 1206 (3216 Metric) Surface Mount Power, Signal Line 2A 1 Lines 100 mOhm Max DCR -55°C ~ 125°C |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MH3261-121Y Datasheet |
Internal Part Number | 898-MH3261-121Y | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | MH3261 Series Material Declaration | |
3D Model | MH3261.stp | |
PCN Obsolescence/ EOL | MG,MU,MZ Series May/2013 | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Filters | |
Family | Ferrite Beads and Chips | |
Manufacturer | Bourns Inc. | |
Series | MH | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Filter Type | Power, Signal Line | |
Number of Lines | 1 | |
Impedance @ Frequency | 120 Ohm @ 100MHz | |
Current Rating (Max) | 2A | |
DC Resistance (DCR) (Max) | 100 mOhm | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Package / Case | 1206 (3216 Metric) | |
Mounting Type | Surface Mount | |
Height (Max) | 0.051" (1.30mm) | |
Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MH3261-121Y | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MH3261-121Y is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of MH3261-121Y is new and unused, you can buy MH3261-121Y Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MH3261-121Y.
