| Manufacturer Part Number: | MAX8795AEVKIT+ |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

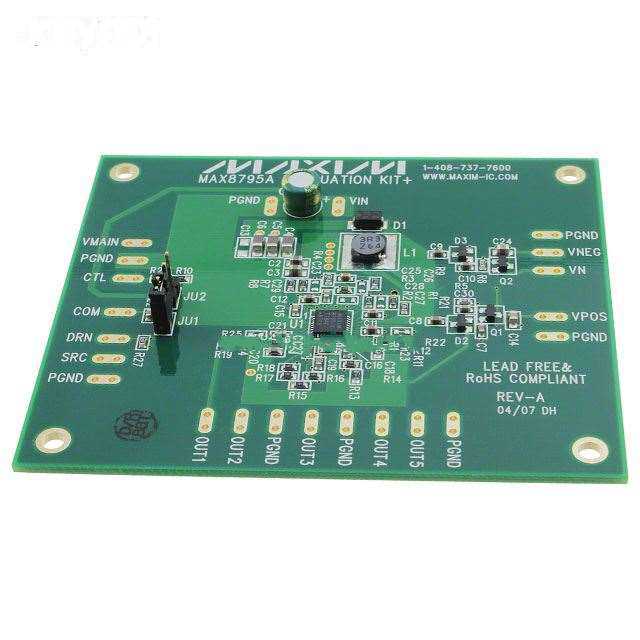

| Description: | MAX8795A - Special Purpose DC/DC, LCD Supply 8, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX8795AEVKIT+ Datasheet |
| Internal Part Number | 898-MAX8795AEVKIT+ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | MAX8795A Evaluation Kit | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Special Purpose DC/DC, LCD Supply | |
| Outputs and Type | 8, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 7V, 7V, 7V, 7V, 7V, 14V, 25V, -10V | |
| Current - Output | 500mA, 130mA, 130mA, 130mA, 130mA, 130mA, 50mA, 20mA | |
| Voltage - Input | 4.5 V ~ 5.5 V | |
| Regulator Topology | Boost, Inverting | |
| Frequency - Switching | 1.2MHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | MAX8795A | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX8795AEVKIT+ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX8795AEVKIT+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX8795AEVKIT+ is new and unused, you can buy MAX8795AEVKIT+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX8795AEVKIT+.
