Manufacturer Part Number: | MAF94264 |
---|---|
Manufacturer: | Laird Technologies IAS |
Product Category: | RF Antennas |
Available Quantity: | 17114 Pieces |
Unit Price: | Quote by Email |

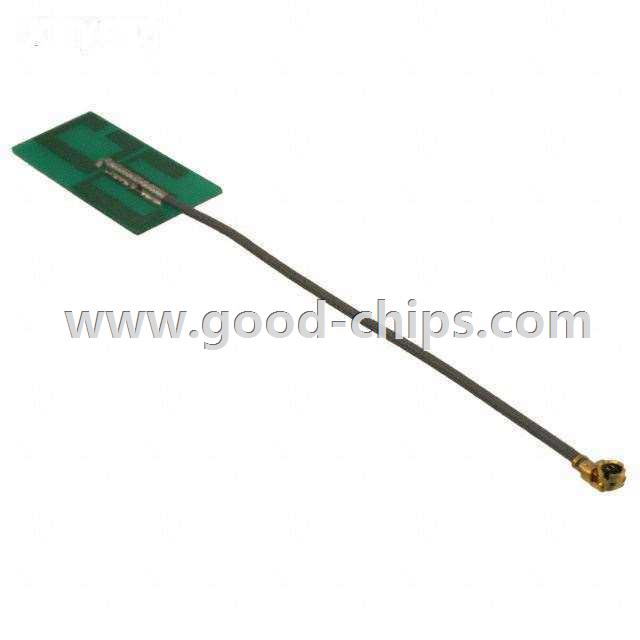

Description: | 2.4GHz, 5.5GHz Bluetooth, WLAN PCB Trace RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz 2.5dBi Connector, IPEX MHF (U.FL) Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MAF94264 Datasheet |
Internal Part Number | 898-MAF94264 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Online Catalog | Laird Technologies - Embedded | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Laird Technologies IAS | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | |
Frequency (Center/Band) | 2.4GHz, 5.5GHz | |
Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | |
Antenna Type | PCB Trace | |
Number of Bands | 2 | |
VSWR | 2 | |
Return Loss | - | |
Gain | 2.5dBi | |
Power - Max | - | |
Features | - | |
Termination | Connector, IPEX MHF (U.FL) | |
Ingress Protection | - | |
Mounting Type | Surface Mount | |
Height (Max) | 0.475" (12.06mm) | |
Applications | Bluetooth, WLAN | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MAF94264 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MAF94264 is in stock for immediate shipping now. We are the distributor of Laird Technologies IAS all series components. The condition of MAF94264 is new and unused, you can buy MAF94264 Laird Technologies IAS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAF94264.
