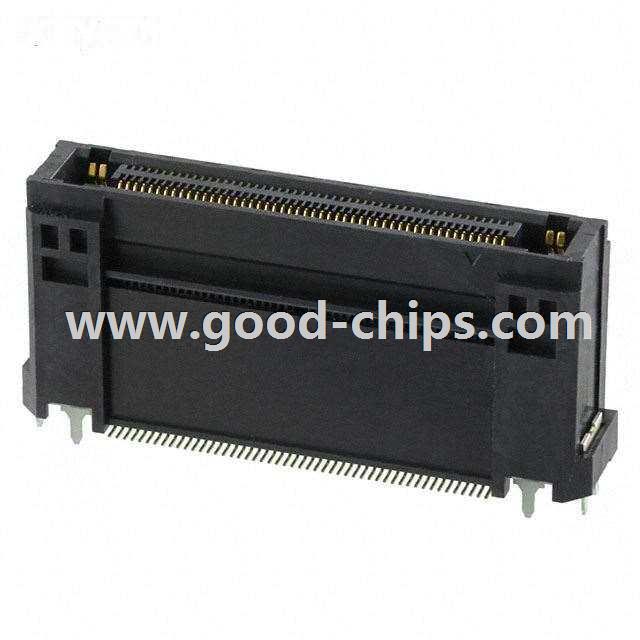

| Manufacturer Part Number: | FX23-100S-0.5SV10 |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9049 Pieces |
| Unit Price: | Quote by Email |
| Description: | 104 (100 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FX23-100S-0.5SV10 Datasheet |
| Internal Part Number | 898-FX23-100S-0.5SV10 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Hirose FunctionMAX Board-to-Board Connectors | Digi-Key Daily | |
| Featured Product | FX23 Series Connectors | |
| Online Catalog | FunctionMax® FX23 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | FunctionMax™ FX23 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Receptacle, Center Strip Contacts | |
| Number of Positions | 104 (100 + 4 Power) | |
| Pitch | 0.020" (0.50mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | - | |
| Height Above Board | - | |
| Standard Package | 72 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FX23-100S-0.5SV10 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FX23-100S-0.5SV10 is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of FX23-100S-0.5SV10 is new and unused, you can buy FX23-100S-0.5SV10 Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FX23-100S-0.5SV10.
