Manufacturer Part Number: | MAAP-011246-TR0500 |
---|---|
Manufacturer: | M/A-Com Technology Solutions |
Product Category: | RF Amplifiers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Amplifier IC VSAT 27.5GHz ~ 31GHz 32-AQFN (5x5) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MAAP-011246-TR0500 Datasheet |
Internal Part Number | 898-MAAP-011246-TR0500 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Online Catalog | M/A-Com Technology Solutions | |
Category | RF/IF and RFID | |
Family | RF Amplifiers | |
Manufacturer | M/A-Com Technology Solutions | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Frequency | 27.5GHz ~ 31GHz | |
P1dB | 30dBm | |
Gain | 22dB | |
Noise Figure | - | |
RF Type | VSAT | |
Voltage - Supply | 6V | |
Current - Supply | 1.4A | |
Test Frequency | - | |

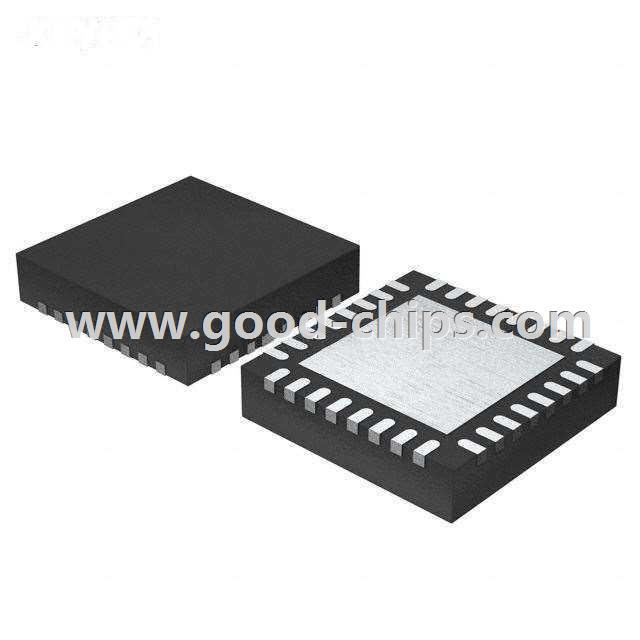

Package / Case | 32-LFQFN Exposed Pad | |
Supplier Device Package | 32-AQFN (5x5) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MAAP-011246-TR0500 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MAAP-011246-TR0500 is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of MAAP-011246-TR0500 is new and unused, you can buy MAAP-011246-TR0500 M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAAP-011246-TR0500.
