| Manufacturer Part Number: | LM2574HVM-12 |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

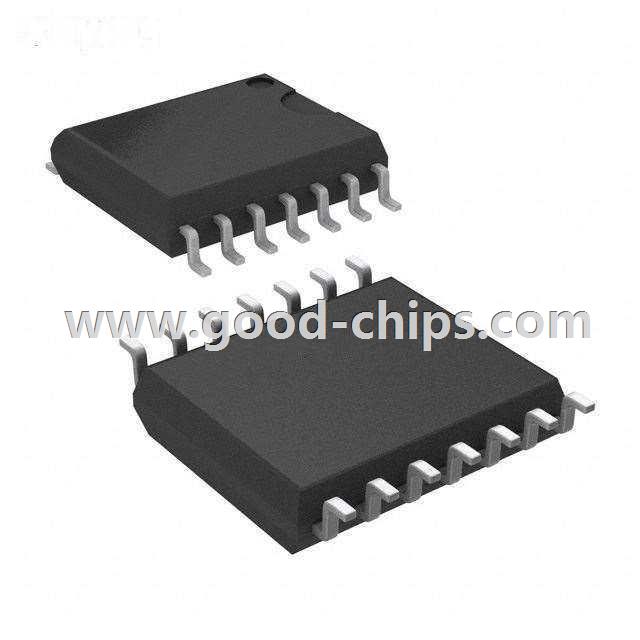

| Description: | Buck Switching Regulator IC Positive Fixed 12V 1 Output 500mA 14-SOIC (0.295", 7.50mm Width) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LM2574HVM-12 Datasheet |
| Internal Part Number | 898-LM2574HVM-12 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SIMPLE SWITCHER® Regulators Powering FPGAs with SIMPLE SWITCHER® LMZ3 Power Modules | |
| Video File | Wide VIN Power Design with LMZ3 SIMPLE SWITCHER Power Module SIMPLE SWITCHER® Power Modules with High Power Density SIMPLE SWITCHER Synchronous Regulator Family Overview The Most Interesting Engineer in the World Layout Tips for Radiated EMI Reduction in Your Designs Thermal Design Made Simple Loop Compensation Made SIMPLE WEBENCH PCB Export for Synchronous SIMPLE SWITCHER Devices | |
| Featured Product | Create your power design now with TI’s WEBENCH® Designer | |
| Manufacturer Product Page | LM2574HVM-12 Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Texas Instruments | |
| Series | SIMPLE SWITCHER® | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Fixed | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4V | |
| Voltage - Input (Max) | 60V | |
| Voltage - Output (Min/Fixed) | 12V | |
| Voltage - Output (Max) | - | |
| Current - Output | 500mA | |
| Frequency - Switching | 52kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-SOIC (0.295", 7.50mm Width) | |
| Supplier Device Package | 14-SOICW | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LM2574HVM-12 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LM2574HVM-12 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LM2574HVM-12 is new and unused, you can buy LM2574HVM-12 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LM2574HVM-12.
