| Manufacturer Part Number: | LDC1312QDNTRQ1 |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Data Acquisition - ADCs/DACs - Special Purpose |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Inductance-to-Digital Converter 12 bit 13.3k I²C 12-WSON (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LDC1312QDNTRQ1 Datasheet |
| Internal Part Number | 898-LDC1312QDNTRQ1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Measuring Rp of L-C Sensor Setting LDC1312/14, 1612/4, 1101 Sensor Drive Configuration Optimizing L Measurement Resolution | |
| Design Resources | Touch on Metal Buttons LDC1312 Incremental Encoder Knob | |
| Manufacturer Product Page | LDC1312QDNTRQ1 Specifications | |
| Online Catalog | Capacitance, Inductance to Digital | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - ADCs/DACs - Special Purpose | |
| Manufacturer | Texas Instruments | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Inductance-to-Digital Converter | |
| Resolution (Bits) | 12 b | |
| Sampling Rate (Per Second) | 13.3k | |
| Data Interface | I²C | |
| Voltage Supply Source | Single Supply | |
| Voltage - Supply | 2.7 V ~ 3.6 V | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

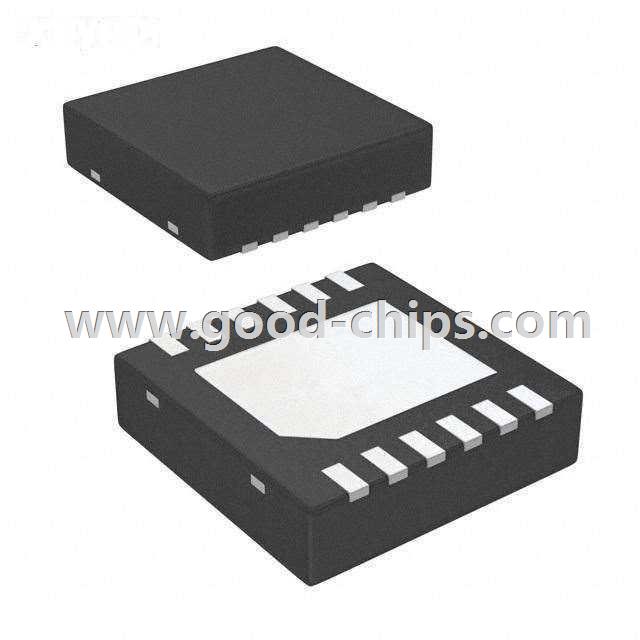

| Package / Case | 12-WFDFN Exposed Pad | |
| Supplier Device Package | 12-WSON (4x4) | |
| Standard Package | 4,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LDC1312QDNTRQ1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LDC1312QDNTRQ1 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LDC1312QDNTRQ1 is new and unused, you can buy LDC1312QDNTRQ1 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LDC1312QDNTRQ1.
