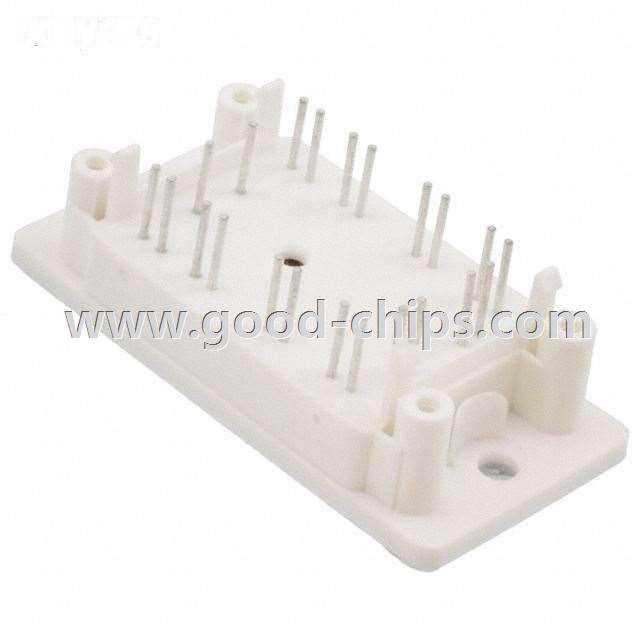

| Manufacturer Part Number: | APTC60HM83FT2G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 600V 36A MODULE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTC60HM83FT2G Datasheet |
| Internal Part Number | 898-APTC60HM83FT2G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Microsemi Corporation | |
| Series | CoolMOS™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Half Bridge) | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 600V | |
| Current - Continuous Drain (Id) @ 25°C | 36A | |
| Rds On (Max) @ Id, Vgs | 83 mOhm @ 18A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 3mA | |
| Gate Charge (Qg) @ Vgs | 255nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 7290pF @ 25V | |
| Power - Max | 250W | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module | |
| Supplier Device Package | Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTC60HM83FT2G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTC60HM83FT2G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTC60HM83FT2G is new and unused, you can buy APTC60HM83FT2G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTC60HM83FT2G.
