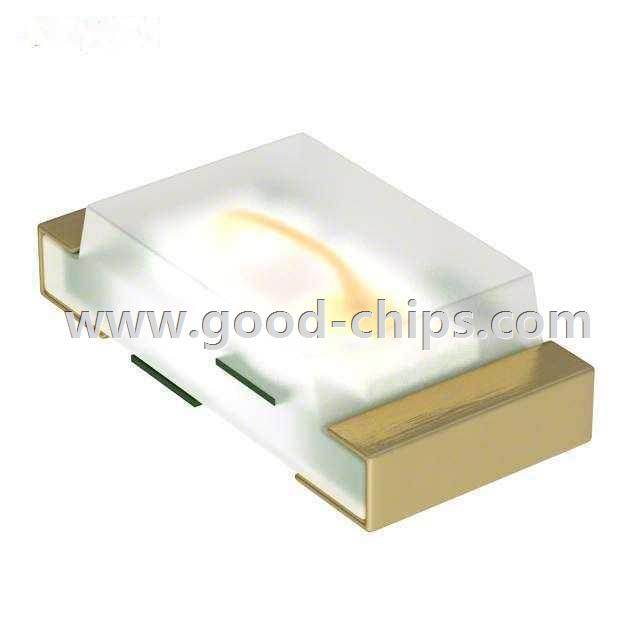

| Manufacturer Part Number: | HSMW-CL25 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | White LED Indication - Discrete 2.85V 0603 (1608 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HSMW-CL25 Datasheet |
| Internal Part Number | 898-HSMW-CL25 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 02/Jul/2012 | |
| PCN Design/Specification | LED Intensity Range 04/Apr/2012 | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Color | White | |
| Lens Color | White | |
| Lens Transparency | Diffused | |
| Millicandela Rating | 70mcd | |
| Lens Style/Size | Rectangle with Flat Top, 1.10mm x 0.80mm | |
| Voltage - Forward (Vf) (Typ) | 2.85V | |
| Current - Test | 5mA | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | - | |
| Wavelength - Peak | - | |
| Features | - | |
| Package / Case | 0603 (1608 Metric) | |
| Supplier Device Package | Chip LED | |
| Size / Dimension | 1.60mm L x 0.80mm W | |
| Height (Max) | 0.30mm | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HSMW-CL25 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HSMW-CL25 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HSMW-CL25 is new and unused, you can buy HSMW-CL25 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HSMW-CL25.
