242260

242260
Manufacturer Part Number:242260
Manufacturer:
Product Category:Coaxial Connectors (RF) - Adapters
Available Quantity:9033 Pieces
Unit Price:Quote by Email

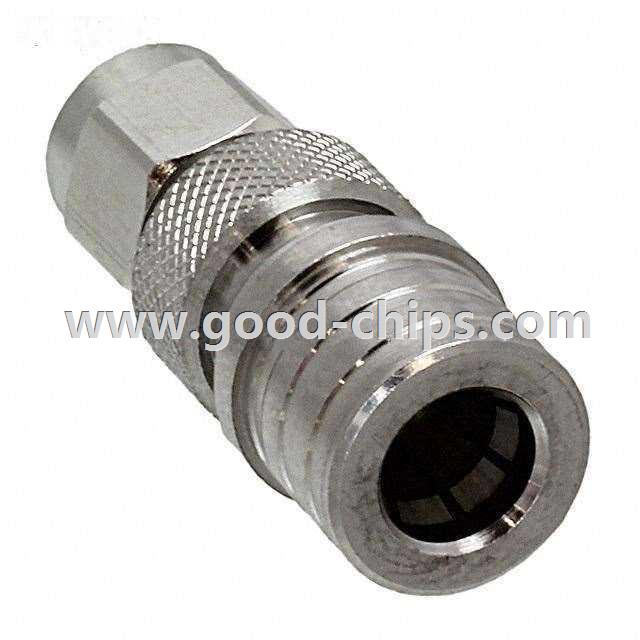

Description:Adapter Coaxial Connector QMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohm
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 242260 Datasheet
242260´s Parameters
Internal Part Number898-242260
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D Model242260.igs
Online Catalog Coaxial, RF Adapters - Amphenol-RF Division
CategoryConnectors, Interconnects
FamilyCoaxial Connectors (RF) - Adapters
ManufacturerAmphenol-RF Division
Series-
PackagingBulk
Part StatusActive
Adapter TypePlug to Plug
Adapter SeriesSMA to QMA
Center GenderMale to Male
Convert From (Adapter End)QMA Plug, Male Pin
Convert To (Adapter End)SMA Plug, Male Pin
Conversion TypeBetween Series
Impedance50 Ohm
StyleStraight
Mounting TypeFree Hanging (In-Line)
Frequency - Max18GHz
Ingress Protection-
Features-
Body MaterialBrass
Body FinishWhite Bronze
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Center Contact MaterialBrass
Center Contact PlatingGold
Mating Cycles100
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part242260
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

242260 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 242260 is new and unused, you can buy 242260 Amphenol-RF Division with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 242260.
