Manufacturer Part Number: | HR08D-12WLPN-10S |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Circular Connectors |
Available Quantity: | 9025 Pieces |
Unit Price: | Quote by Email |

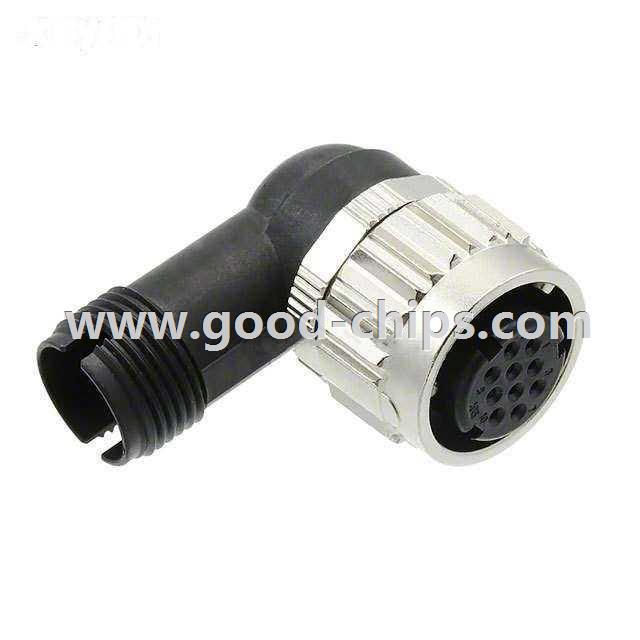

Description: | 10 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HR08D-12WLPN-10S Datasheet |
Internal Part Number | 898-HR08D-12WLPN-10S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | HR08D Series Introduction | |
Featured Product | HR08D IP68 Rated Small Waterproof Circular Connector | |
Online Catalog | HR08D Series | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | Hirose Electric Co Ltd | |
Series | HR08D | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug, Female Sockets | |
Number of Positions | 10 | |
Shell Size - Insert | 12 | |
Shell Size, MIL | - | |
Mounting Type | Free Hanging (In-Line), Right Angle | |
Termination | Solder Cup | |
Fastening Type | Push-Twist | |
Orientation | Keyed | |
Ingress Protection | IP67/68 - Dust Tight, Waterproof | |
Shell Material, Finish | Aluminum Alloy, Polyamide Resin and Zinc Alloy | |
Contact Finish | Gold | |
Features | Backshell | |
Contact Finish Thickness | - | |
Current Rating | 3A | |
Voltage - Rated | 200VAC, 250VDC | |
Operating Temperature | -20°C ~ 85°C | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HR08D-12WLPN-10S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HR08D-12WLPN-10S is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of HR08D-12WLPN-10S is new and unused, you can buy HR08D-12WLPN-10S Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HR08D-12WLPN-10S.
