| Manufacturer Part Number: | HLMP-3600-D00B2 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
| Available Quantity: | 9091 Pieces |
| Unit Price: | Quote by Email |

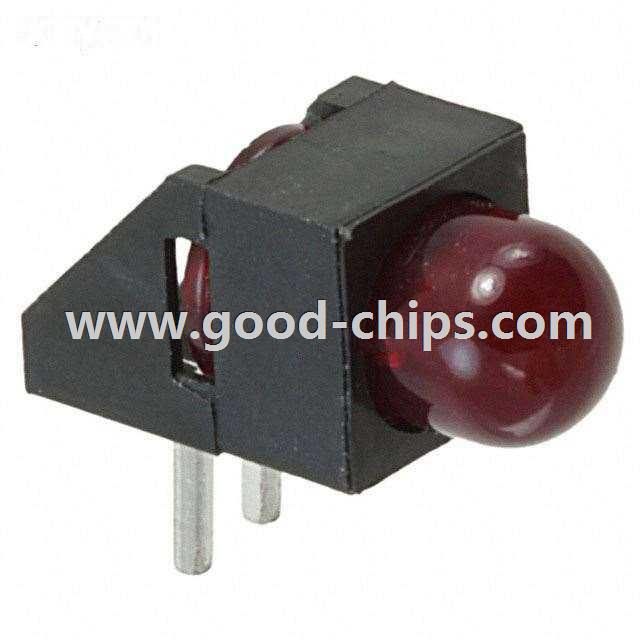

| Description: | LED Circuit Board Indicator Single Red Diffused, Tinted 5V 10mA Round with Domed Top, 5mm (T-1 3/4) Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HLMP-3600-D00B2 Datasheet |
| Internal Part Number | 898-HLMP-3600-D00B2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Thickness 31/Dec/2013 Thickness Revision B 15/Jun/2015 | |
| Online Catalog | HLMP Series LEDs | |
| Category | Optoelectronics | |
| Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
| Manufacturer | Broadcom Limited | |
| Series | HLMP-3600 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Red | |
| Wavelength - Peak | 635nm | |
| Configuration | Single | |
| Current | 10mA | |
| Millicandela Rating | 2.1mcd | |
| Viewing Angle | 60° | |
| Lens Type | Diffused, Tinted | |
| Lens Style/Size | Round with Domed Top, 5mm (T-1 3/4) | |
| Voltage Rating | 5V | |
| Mounting Type | Through Hole, Right Angle | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HLMP-3600-D00B2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HLMP-3600-D00B2 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HLMP-3600-D00B2 is new and unused, you can buy HLMP-3600-D00B2 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HLMP-3600-D00B2.
