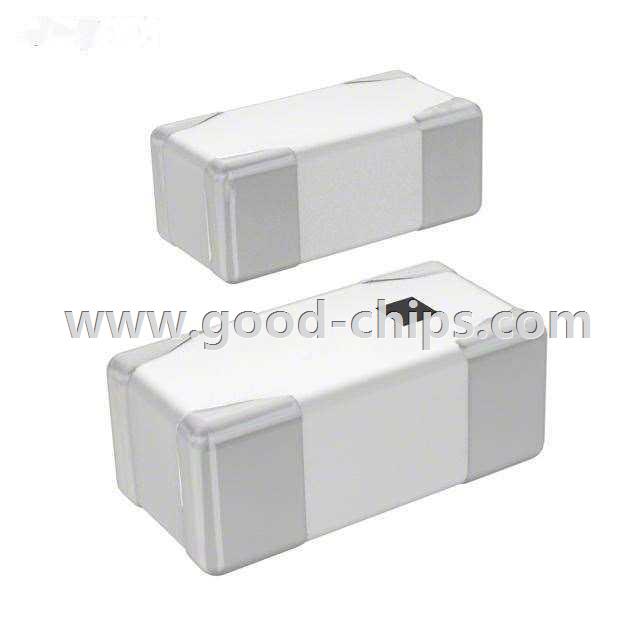

| Manufacturer Part Number: | HHM2942A2 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | RF Directional Coupler |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Directional Coupler General Purpose 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz 19.2dB 0402 (1005 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HHM2942A2 Datasheet |
| Internal Part Number | 898-HHM2942A2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | HHM29 Series | |
| Category | RF/IF and RFID | |
| Family | RF Directional Coupler | |
| Manufacturer | TDK Corporation | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Coupler Type | Standard | |
| Frequency | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | |
| Coupling Factor | 19.2dB | |
| Applications | General Purpose | |
| Insertion Loss | 0.45dB | |
| Power - Max | - | |
| Isolation | - | |
| Return Loss | 18dB | |
| Package / Case | 0402 (1005 Metric) | |
| Supplier Device Package | - | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HHM2942A2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HHM2942A2 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of HHM2942A2 is new and unused, you can buy HHM2942A2 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HHM2942A2.
