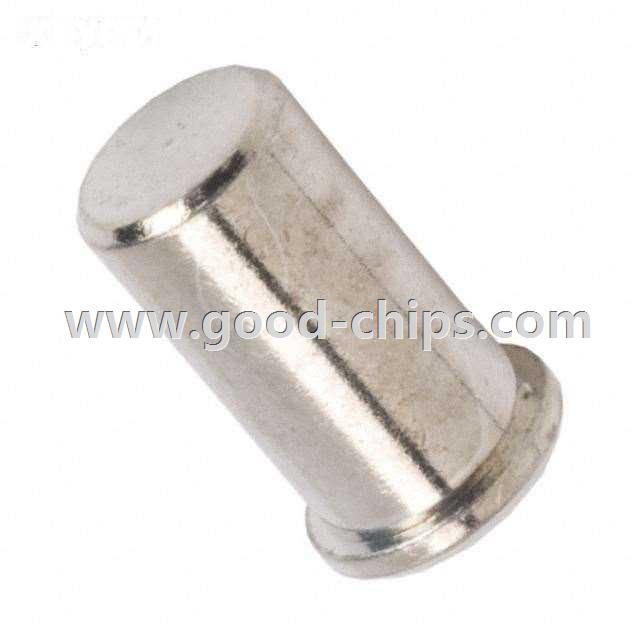

| Manufacturer Part Number: | H3492-01 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Available Quantity: | 10197 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pin Receptacle Connector 0.079" (2.00mm) No Tail Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H3492-01 Datasheet |
| Internal Part Number | 898-H3492-01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Spacers, Terminals, and PCB Sockets | |
| Online Catalog | Harwin Inc | |
| Category | Connectors, Interconnects | |
| Family | Terminals - PC Pin Receptacles, Socket Connectors | |
| Manufacturer | Harwin Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Tail Type | No Tail | |
| Termination | Solder | |
| Length - Overall | 0.315" (8.00mm) | |
| Accepts Pin Diameter | 0.079" (2.00mm) | |
| Mounting Hole Diameter | 0.158" ~ 0.162" (4.01mm ~ 4.12mm) | |
| Pin Hole Diameter | - | |
| Flange Diameter | 0.187" (4.75mm) | |
| Tail Diameter | - | |
| Socket Depth | 0.161" (4.09mm) | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Features | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Board Thickness | - | |
| Insertion Force | 2.99Nm ~ 6.00Nm | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H3492-01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H3492-01 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of H3492-01 is new and unused, you can buy H3492-01 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H3492-01.
