FA1-NZSP-C04-1

FA1-NZSP-C04-1
Manufacturer Part Number:FA1-NZSP-C04-1
Manufacturer:
Product Category:Coaxial Connectors (RF)
Available Quantity:9010 Pieces
Unit Price:Quote by Email

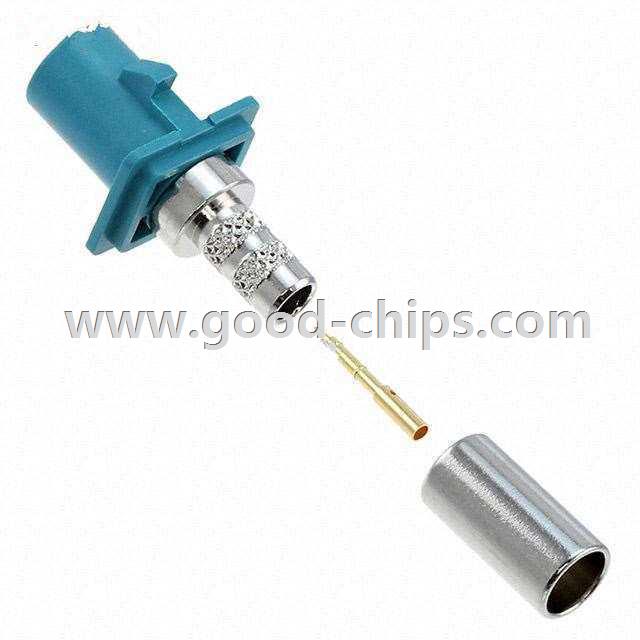

Description:SMB, Fakra Connector Plug, Male Pin 50 Ohm Panel Mount, Square Flange - No Holes Crimp
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: FA1-NZSP-C04-1 Datasheet
FA1-NZSP-C04-1´s Parameters
Internal Part Number898-FA1-NZSP-C04-1
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesFAKRA Series
Online Catalog SMB, Fakra
CategoryConnectors, Interconnects
FamilyCoaxial Connectors (RF)
ManufacturerAmphenol-RF Division
Series-
PackagingTray
Part StatusActive
Connector StyleSMB, Fakra
Connector TypePlug, Male Pin
Contact TerminationCrimp
Shield TerminationCrimp
Impedance50 Ohm
Mounting TypePanel Mount, Square Flange - No Holes
Cable GroupRG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Fastening TypeLocking Ramp
Frequency - Max4GHz
FeaturesCode Z
Housing ColorBlue, Water
Ingress Protection-
Body MaterialBrass
Body FinishNickel
Center Contact MaterialBrass
Center Contact PlatingGold
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Voltage Rating-
Operating Temperature-40°C ~ 100°C
Standard Package 2,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartFA1-NZSP-C04-1
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

FA1-NZSP-C04-1 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of FA1-NZSP-C04-1 is new and unused, you can buy FA1-NZSP-C04-1 Amphenol-RF Division with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for FA1-NZSP-C04-1.
