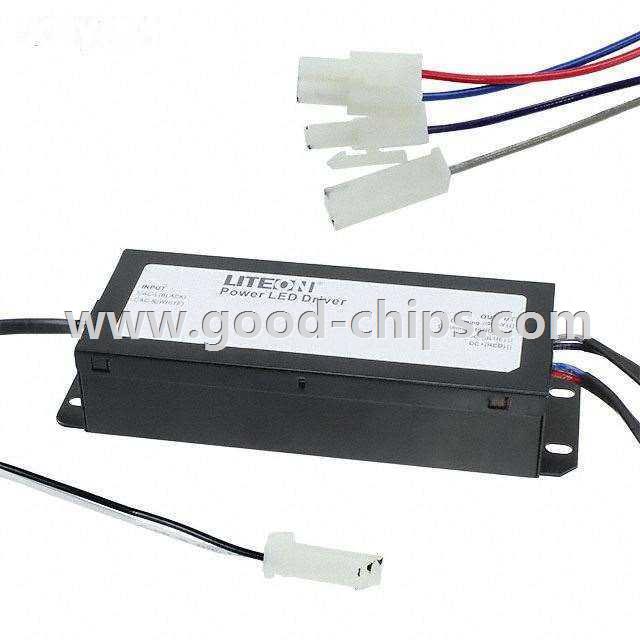

| Manufacturer Part Number: | PA-1400-46SL |
|---|---|
| Manufacturer: | Lite-On Inc. |
| Product Category: | LED Drivers |
| Available Quantity: | 9210 Pieces |
| Unit Price: | Quote by Email |
| Description: | 700mA 28 ~ 60 V Constant Current LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PA-1400-46SL Datasheet |
| Internal Part Number | 898-PA-1400-46SL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Lite-On Inc. | |
| Series | - | |
| Part Status | Active | |
| Type | Constant Current | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 100VAC | |
| Voltage - Input (Max) | 305VAC | |
| Voltage - Output | 28 ~ 60 V | |
| Current - Output (Max) | 700mA | |
| Power (Watts) | 42W | |
| Voltage - Isolation | 3.75kV (3750V) | |
| Dimming | Analog | |
| Features | OTP, OVP, SCP | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 60°C | |
| Efficiency | 86% | |
| Termination Style | Wire Leads | |
| Size / Dimension | 5.68" L x 2.25" W x 1.26" H (144.2mm x 57.2mm x 32.0mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | CE | |
| Weight | 0.001 KG | |
| Standard Package | 20 | |
| Application | Email for details | |
| Replacement Part | PA-1400-46SL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PA-1400-46SL is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of PA-1400-46SL is new and unused, you can buy PA-1400-46SL Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA-1400-46SL.
