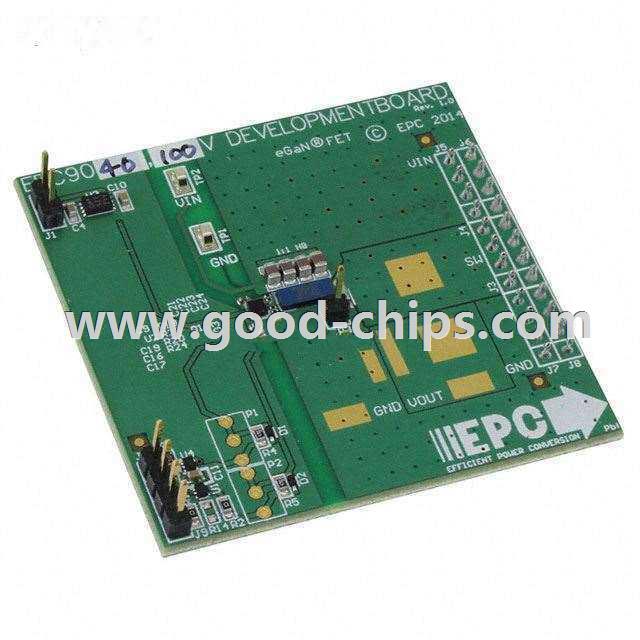

Manufacturer Part Number: | EPC9040 |
---|---|
Manufacturer: | EPC |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9054 Pieces |
Unit Price: | Quote by Email |
Description: | EPC2104 eGaN® Series Power Management, Half H-Bridge Driver (External FET) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EPC9040 Datasheet |
Internal Part Number | 898-EPC9040 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | eGaN® Integrated GaN Power | |
Design Resources | EPC9040 Schematic Development Tool Selector | |
Online Catalog | EPC2014 Development Board EPC9040 | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | EPC | |
Series | eGaN® | |
Part Status | Active | |
Main Purpose | Power Management, Half H-Bridge Driver (External FET) | |
Embedded | No | |
Utilized IC / Part | EPC2104 | |
Primary Attributes | 100V, 15A Max Output GaNFET Capability | |
Secondary Attributes | GaNFET Driver Circuit Uses 7V ~ 12V | |
Supplied Contents | Board | |
Standard Package | 40 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EPC9040 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EPC9040 is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC9040 is new and unused, you can buy EPC9040 EPC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPC9040.
