| Manufacturer Part Number: | ELFF03230 |
|---|---|
| Manufacturer: | Amphenol PCD |
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Available Quantity: | 11255 Pieces |
| Unit Price: | Quote by Email |

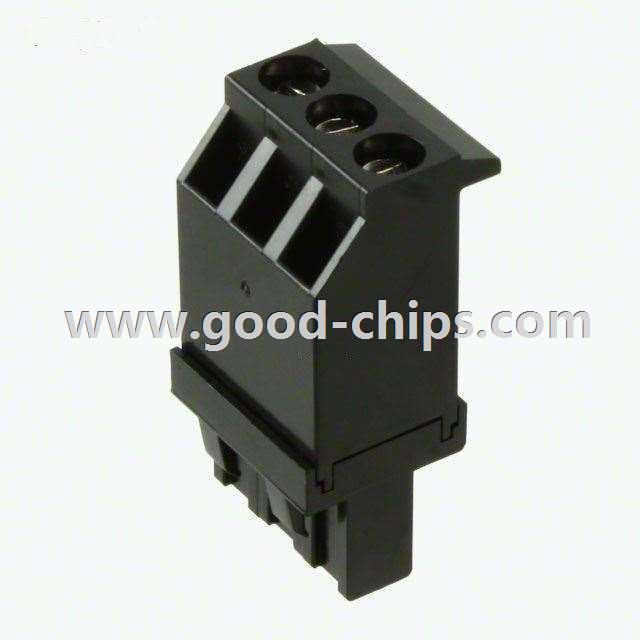

| Description: | 3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ELFF03230 Datasheet |
| Internal Part Number | 898-ELFF03230 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | ELF Series | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Headers, Plugs and Sockets | |
| Manufacturer | Amphenol PCD | |
| Series | ELFF | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Plug, Female Sockets | |
| Number of Positions | 3 | |
| Positions Per Level | 3 | |
| Number of Levels | 1 | |
| Pitch | 0.200" (5.08mm) | |
| Header Orientation | - | |
| Plug Wire Entry | 90° | |
| Termination Style | Screw - Rising Cage Clamp | |
| Mounting Type | Free Hanging (In-Line) | |
| Current - IEC | - | |
| Voltage - IEC | - | |
| Current - UL | 15A | |
| Voltage - UL | 300V | |
| Wire Gauge or Range - AWG | 12 AWG, 14-26 AWG | |
| Wire Gauge or Range - mm² | - | |
| Color | Black | |
| Operating Temperature | 105°C | |
| Contact Mating Finish | Tin | |
| Features | Retention Latches (Wire Side) | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ELFF03230 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ELFF03230 is in stock for immediate shipping now. We are the distributor of Amphenol PCD all series components. The condition of ELFF03230 is new and unused, you can buy ELFF03230 Amphenol PCD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ELFF03230.
