| Manufacturer Part Number: | ECP-U1C104MA5 |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Film Capacitors |
| Available Quantity: | 126010 Pieces |
| Unit Price: | Quote by Email |

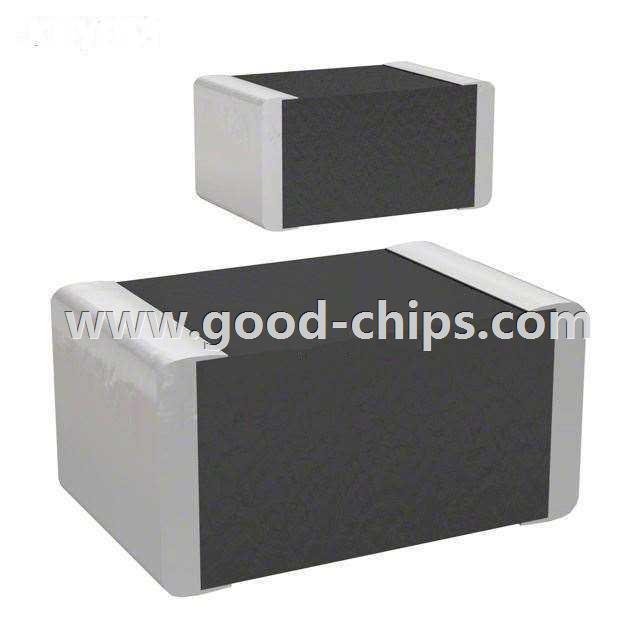

| Description: | 0.1µF Film Capacitor 16V Acrylic, Metallized - Stacked 0805 (2012 Metric) 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ECP-U1C104MA5 Datasheet |
| Internal Part Number | 898-ECP-U1C104MA5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | ECW-U, ECP-U Series 11/Apr/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | ECP-U(A) Series | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | Panasonic Electronic Components | |
| Series | ECP-U(A) | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 0.1µF | |
| Tolerance | ±20% | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 16V | |
| Dielectric Material | Acrylic, Metallized - Stacked | |
| ESR (Equivalent Series Resistance) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 0805 (2012 Metric) | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Height - Seated (Max) | 0.047" (1.20mm) | |
| Termination | Solder Pads | |
| Lead Spacing | - | |
| Applications | EMI, RFI Suppression | |
| Features | Low ESR | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ECP-U1C104MA5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ECP-U1C104MA5 is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of ECP-U1C104MA5 is new and unused, you can buy ECP-U1C104MA5 Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ECP-U1C104MA5.
