| Manufacturer Part Number: | SM320F28335GJZMEP |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9485 Pieces |
| Unit Price: | Quote by Email |
| Description: | C28x C2000™ C28x Delfino™ Microcontroller IC 32-Bit 150MHz 512KB (256K x 16) FLASH 176-BGA (15x15) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SM320F28335GJZMEP Datasheet |
| Internal Part Number | 898-SM320F28335GJZMEP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Microcontrollers: ControlSUITE - Comprehensive software for the entire design process Motor Signal Chain Overview TPS75005 Single IC Power for C2000 MCU Intro to Timers and Clocks Microcontrollers: SYS/BIOS: Introduction to Real-Time Operating Systems and SYS/BIOS | |
| Video File | Let TI and MathWorks help you launch your next motor control design - in cooperation with Digi-Key | |
| Design Resources | Development Tool Selector | |
| Featured Product | Create your power design now with TI’s WEBENCH® Designer | |
| Manufacturer Product Page | SM320F28335GJZMEP Specifications | |
| Online Catalog | TMS320F28x3x Delfino™ | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Texas Instruments | |
| Series | C2000™ C28x Delfino™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | C28x | |
| Core Size | 32-Bit | |
| Speed | 150MHz | |
| Connectivity | CAN, EBI/EMI, I²C, McBSP, SCI, SPI, UART/USART | |
| Peripherals | DMA, POR, PWM, WDT | |
| Number of I/O | 88 | |
| Program Memory Size | 512KB (256K x 16) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 34K x 16 | |
| Voltage - Supply (Vcc/Vdd) | 1.805 V ~ 1.995 V | |
| Data Converters | A/D 16x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -55°C ~ 125°C (TA) | |

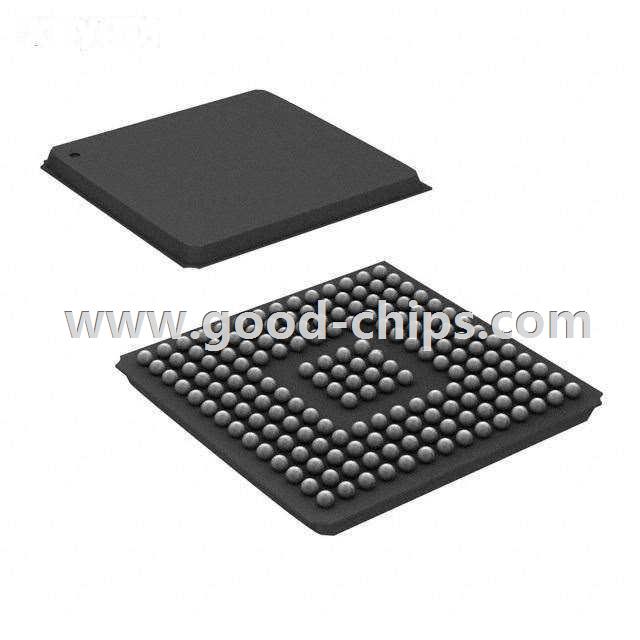

| Package / Case | 176-BGA | |
| Supplier Device Package | 176-BGA (15x15) | |
| Standard Package | 126 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SM320F28335GJZMEP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SM320F28335GJZMEP is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of SM320F28335GJZMEP is new and unused, you can buy SM320F28335GJZMEP Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SM320F28335GJZMEP.
