| Manufacturer Part Number: | DC1889A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |

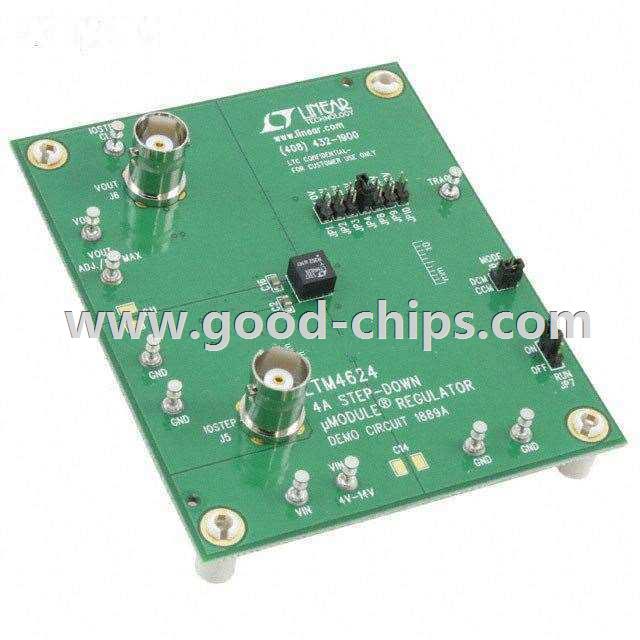

| Description: | LTM4624 µModule® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1889A Datasheet |
| Internal Part Number | 898-DC1889A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LTM4624 Step-Down µModule | |
| Video File | LTM4624 TechClip - Efficiency, Thermal and Load Transient Performance | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ | |
| Design Resources | DC1889A Design Files DC1889A Schematic Development Tool Selector | |
| Reference Design Library | DC1889A: 0.6 ~ 5.5V @ 4A, 4 ~ 14V in | |
| Online Catalog | LTM4624EY Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | |
| Current - Output | 4A | |
| Voltage - Input | 4 V ~ 14 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 1MHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LTM4624 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1889A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1889A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1889A is new and unused, you can buy DC1889A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1889A.
