| Manufacturer Part Number: | DAPV15P565GTXLF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

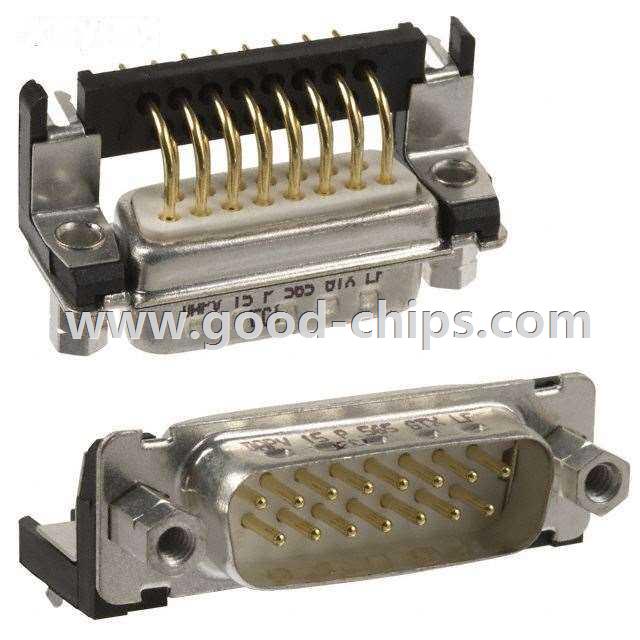

| Description: | 15 Position D-Sub Plug, Male Pins Connector, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DAPV15P565GTXLF Datasheet |
| Internal Part Number | 898-DAPV15P565GTXLF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | dapv15p565gtxlf_c.igs dapv15p565gtxlf_c.prt dapv15p565gtxlf_c.stp | |
| PCN Design/Specification | Dsub Series Plating 05/Jun/2010 OD, DP Series Drawing Rev. 25/Feb/2015 | |
| PCN Assembly/Origin | DP Series 03/Nov/2010 | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | DP | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 15 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 2 (DA, A) | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Mating Side, Female Screwlock (4-40) | |
| Termination | Solder | |
| Features | Board Lock, Grounding Indents | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold, GXT™ | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Current Rating | 7.5A | |
| Housing Material | Thermoplastic | |
| Color | - | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DAPV15P565GTXLF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DAPV15P565GTXLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of DAPV15P565GTXLF is new and unused, you can buy DAPV15P565GTXLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DAPV15P565GTXLF.
